DTS20N11 Series

Catalog

CIRCULAR MIL SPEC CONNECTOR HERM RECP

Part	Fastening Type	Color	Qualification	Applications	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Primary Material	Shell Material	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Contact Finish - Mating	Shell Finish	Number of Positions	Contact Material	Insert Material	Current Rating (Amps)	Mounting Feature	Orientation	Voltage Rating	Voltage Rating	Shell Size - Insert	Shielding

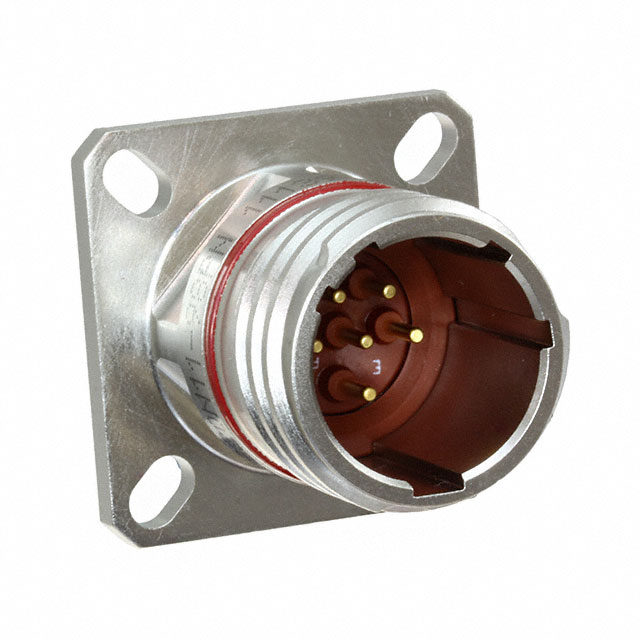

TE Connectivity AMP Connectors DTS20N11-98PN	Threaded	Silver	MIL-DTL-38999 Series III	Aviation Marine Military	Environment Sealed	200 °C	-55 C	Receptacle Male Pins	50 µin	1.27 µm	Panel Mount	Metal	Stainless Steel	11	98	Gold	Nickel	6	Nickel Iron Alloy	Fluorosilicone Elastomer	5 A	Flange	N (Normal)
TE Connectivity AMP Connectors DTS20N11-05PN [V001]	Threaded	Silver	MIL-DTL-38999 Series III	Aviation Communication Systems Industrial	Environment Resistant	200 °C	-65 ░C	Receptacle Male Pins			Panel Mount	Metal	Stainless Steel			Gold	Nickel	5	Nickel Iron Alloy	Fluorosilicone Elastomer		Flange	N (Normal)	600 VAC	850 VDC	11-5	Shielded
