412/2 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

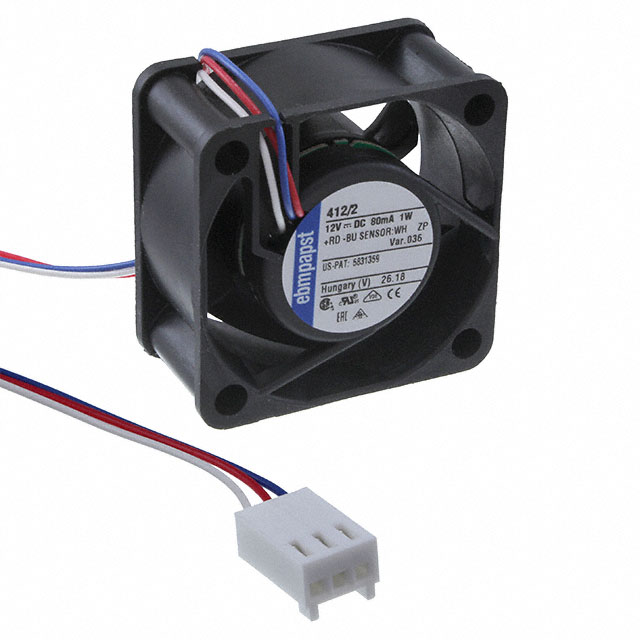

FAN AXIAL 40X20MM 12VDC WIRE
| Part | Material - Blade | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Air Flow | Features | Width [y] | Termination | Power (Watts) | Voltage - Rated | RPM | Bearing Type | Fan Type | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 10 VDC | 14 V | 50000 Hrs | 40 mm | 40 mm | -20 ░C | 70 °C | 5.9 CFM | 0.165 m³/min | Locked Rotor Protection Speed Sensor (Tach) | 20 mm | 3 Wire Leads | 0.9 W | 12 VDC | 6000 RPM | Sintec | Tubeaxial | 18 dB(A) |
