150240 Series

Catalog

CONN RCPT 40POS 0.079 GOLD PCB

Part	Insulation Material	Contact Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Connector Type	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Type	Contact Finish - Mating	Contact Finish - Post	Number of Rows [custom]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Style	Material Flammability Rating	Voltage Rating	Fastening Type	Features
3M Electronic Specialty 150240-6002-RB	Thermoplastic	Copper Alloy	Square	200 µin	5.08 µm	0.177 in	4.5 mm	Receptacle	Through Hole	2 mm	0.079 in	0.079 "	2 mm	0.1 in	2.54 mm	All	Black	0.76 Ám	30 Áin	Solder	Female Socket	Gold	Tin	2	40	-55 C	105 ░C	Board to Board Cable	UL94 V-0	500 V	Push-Pull
3M Electronic Specialty 150240-5002-RB	Thermoplastic	Copper Alloy	Square	200 µin	5.08 µm	0.179 in	4.55 mm	Receptacle	Right Angle Through Hole	2 mm	0.079 in	0.079 "	2 mm	0.1 in	2.54 mm	All	Black	0.76 Ám	30 Áin	Solder	Female Socket	Gold	Tin	2	40	-55 C	105 ░C	Board to Board Cable	UL94 V-0	500 V	Push-Pull
3M Electronic Specialty 150240-2020-TH	Thermoplastic	Copper Alloy	Square	200 µin	5.08 µm	0.183 in	4.65 mm	Receptacle	Surface Mount	2 mm	0.079 in	0.079 "	2 mm			All	Black	0.38 µm	15 µin	Solder	Female Socket	Gold	Tin-Lead	2	40	-55 C	105 ░C	Board to Board Cable	UL94 V-0	500 V	Push-Pull	Board Guide

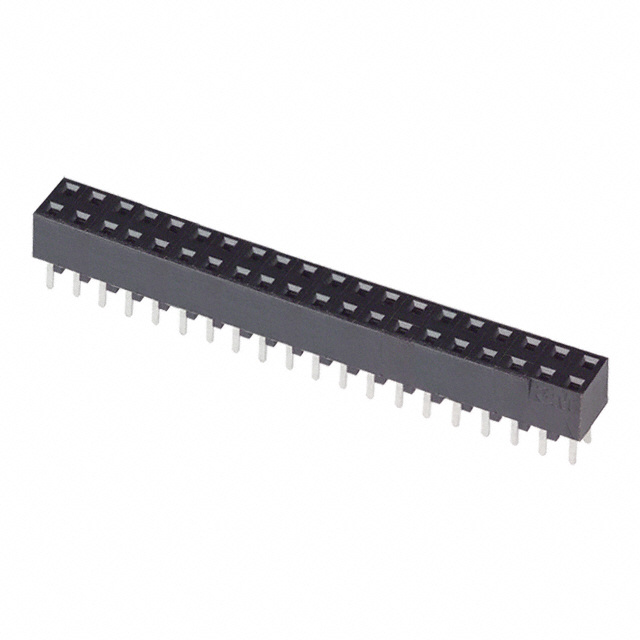

3M Electronic Specialty 150240-6002-TB	Thermoplastic	Copper Alloy	Square	200 µin	5.08 µm	0.177 in	4.5 mm	Receptacle	Through Hole	2 mm	0.079 in	0.079 "	2 mm	0.1 in	2.54 mm	All	Black	0.76 Ám	30 Áin	Solder	Female Socket	Gold	Tin-Lead	2	40	-55 C	105 ░C	Board to Board Cable	UL94 V-0	500 V	Push-Pull
