R1173 Series

Manufacturer: Nisshinbo Micro Devices Inc.

Catalog

LDO VOLTAGE REGULATORS 1A VOLTAGE REGULATOR (LDO REGULATOR)

Part	Output Configuration	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Current - Quiescent (Iq)	Package / Case	Supplier Device Package	Voltage Dropout (Max)	Control Features	Voltage - Input (Max) [Max]	PSRR	Mounting Type	Voltage - Output (Min/Fixed)	Number of Regulators	Package / Case	Voltage Dropout (Max) [Max]	Supplier Device Package [y]	Supplier Device Package [x]	Voltage - Output (Min/Fixed) [Min]
Nisshinbo Micro Devices Inc. R1173H181D-T1-FE	Positive	Over Current Over Temperature	85 °C	-40 C	1 A	100 µA	SOT-89-5/6	SOT-89-5	0.32 V	Enable	6 V	70 db	Surface Mount	1.8 V	1
Nisshinbo Micro Devices Inc. R1173S111D-E2-FE	Positive	Over Current Over Temperature	85 °C	-40 C	1 A	100 µA	4 Leads + 2 Fins 6-SOIC Variation	6-HSOP-J		Enable	6 V	70 db	Surface Mount	1.1 V	1	0.154 in 3.9 mm	0.56 V

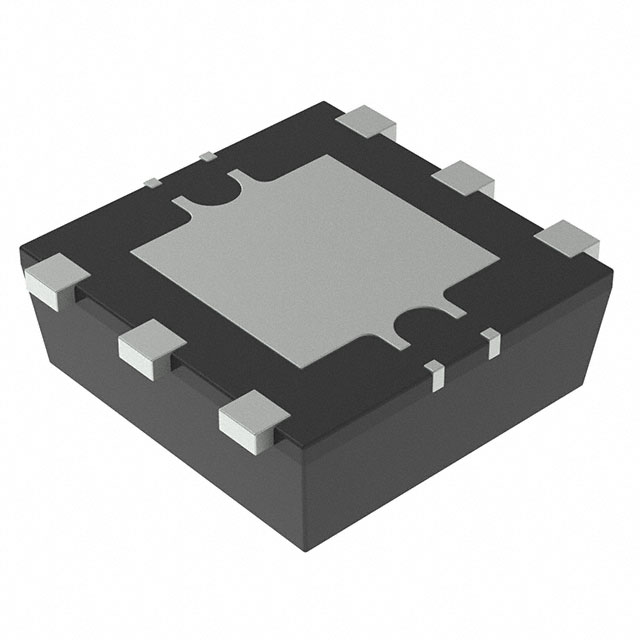

Nisshinbo Micro Devices Inc. R1173D081D-TR-FE	Positive	Over Current Over Temperature	85 °C	-40 C	1 A	100 µA	6-SMD Flat Leads Exposed Pad	6-HSON		Enable	6 V	70 db	Surface Mount	0.8 V	1		0.72 V	2.8	2.9
Nisshinbo Micro Devices Inc. R1173S281D-E2-FE	Positive	Over Current Over Temperature	85 °C	-40 C	1 A	100 µA	4 Leads + 2 Fins 6-SOIC Variation	6-HSOP-J	0.18 V	Enable	6 V	70 db	Surface Mount	2.8 V	1	0.154 in 3.9 mm
Nisshinbo Micro Devices Inc. R1173S181D5-E2-FE	Positive	Over Current Over Temperature	85 °C	-40 C	1 A	100 µA	4 Leads + 2 Fins 6-SOIC Variation	6-HSOP-J	0.32 V	Enable	6 V	70 db	Surface Mount		1	0.154 in 3.9 mm				1.85 V
Nisshinbo Micro Devices Inc. R1173H221D-T1-FE	Positive	Over Current Over Temperature	85 °C	-40 C	1 A	100 µA	SOT-89-5/6	SOT-89-5	0.32 V	Enable	6 V	70 db	Surface Mount	2.2 V	1
Nisshinbo Micro Devices Inc. R1173S451B-E2-FE	Positive	Over Current Over Temperature	85 °C	-40 C	1 A	100 µA	4 Leads + 2 Fins 6-SOIC Variation	6-HSOP-J	0.18 V	Enable	6 V	60 dB	Surface Mount		1	0.154 in 3.9 mm				4.5 V
Nisshinbo Micro Devices Inc. R1173H121B-T1-FE	Positive	Over Current Over Temperature	85 °C	-40 C	1 A	100 µA	SOT-89-5/6	SOT-89-5		Enable	6 V	70 db	Surface Mount	1.2 V	1		0.56 V
