XDDGK14 Series
Manufacturer: SunLED
Beta
⌘K

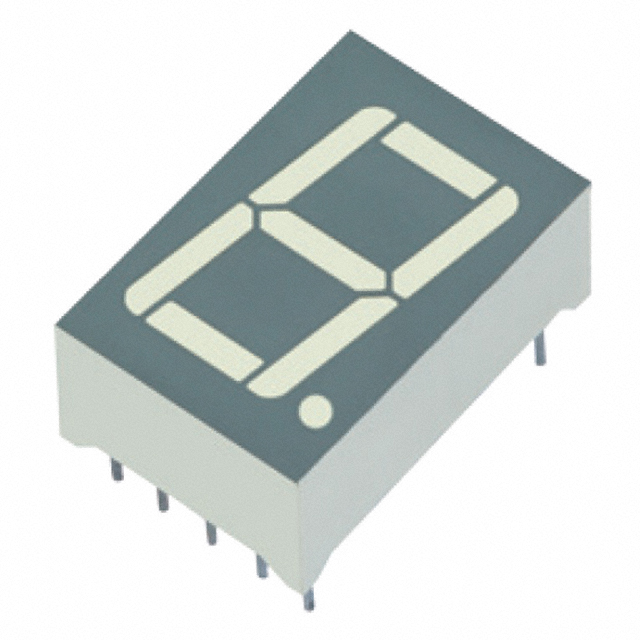

DISPLAY 7SEG 0.56" SGL GRN 10DIP
| Part | Color | Current - Test | Common Pin | Voltage - Forward (Vf) (Typ) | Display Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Package / Case | Number of Characters | Power Dissipation (Max) | Digit/Alpha Size | Digit/Alpha Size | Millicandela Rating | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | Green | 10 mA | Common Anode | 3 V | 7-Segment | 0.315 in | 0.5 " | 0.75 in | 12.7 mm | 19.05 mm | 8 mm | 0.6 in 15.24 mm | 10-DIP | 1 | 102.5 mW | 0.56 in | 14.22 mm | 72 mcd | 515 nm |
