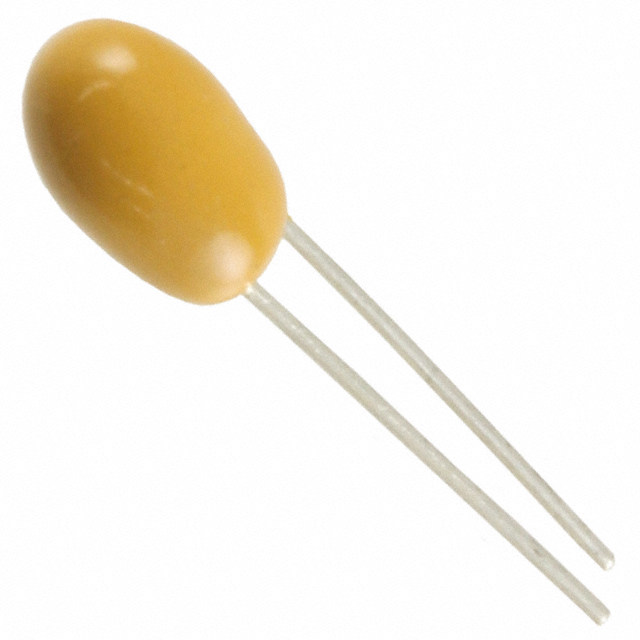

T350F Series

Manufacturer: KEMET

Catalog

TANTALUM CAPACITOR, POLAR, T350 SERIES, 6.8 F, 10%, 35 V, RADIAL LEADED, 2.54 MM ROHS COMPLIANT: YES

Part	Type	Mounting Type	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Manufacturer Size Code	Lead Spacing	Lead Spacing	Voltage - Rated	Package / Case	Features	ESR (Equivalent Series Resistance)
KEMET T350F685K035AT	Conformal Coated	Through Hole	10 %	6 mm	0.236 in	6.8 µF	-55 C	125 °C	F	2.54 mm	0.1 in	35 V	Radial	General Purpose	2.5 Ohm
KEMET T350F156K020AT	Conformal Coated	Through Hole	10 %	6 mm	0.236 in	15 µF	-55 C	125 °C	F	2.54 mm	0.1 in	20 V	Radial	General Purpose	2.3 Ohm
KEMET T350F335M050AT	Conformal Coated	Through Hole	20 %	6 mm	0.236 in	3.3 µF	-55 C	125 °C	F	2.54 mm	0.1 in	50 VDC	Radial	General Purpose	3 Ohm
KEMET T350F476K006AT	Conformal Coated	Through Hole	10 %	6 mm	0.236 in	47 µF	-55 C	125 °C	F	2.54 mm	0.1 in	6.3 VDC	Radial	General Purpose	2 Ohms
KEMET T350F336K010AS	Conformal Coated	Through Hole	10 %	6 mm	0.236 in	33 ÁF	-55 C	125 °C	F	2.54 mm	0.1 in	10 V	Radial	General Purpose	2.1 Ohm
KEMET T350F226K016AS	Conformal Coated	Through Hole	10 %	6 mm	0.236 in	22 µF	-55 C	125 °C	F	2.54 mm	0.1 in	16 V	Radial	General Purpose	2 Ohms
KEMET T350F476K006AS	Conformal Coated	Through Hole	10 %	6 mm	0.236 in	47 µF	-55 C	125 °C	F	2.54 mm	0.1 in	6.3 VDC	Radial	General Purpose	2 Ohms

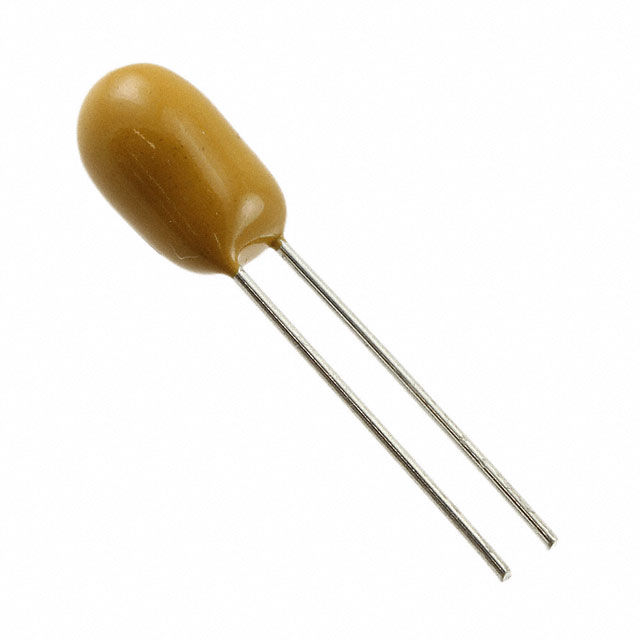

KEMET T350F685M035AT	Conformal Coated	Through Hole	20 %	6 mm	0.236 in	6.8 µF	-55 C	125 °C	F	2.54 mm	0.1 in	35 V	Radial	General Purpose
KEMET T350F336M010AT	Conformal Coated	Through Hole	20 %	6 mm	0.236 in	33 ÁF	-55 C	125 °C	F	2.54 mm	0.1 in	10 V	Radial	General Purpose	2.1 Ohm
KEMET T350F685K035AS	Conformal Coated	Through Hole	10 %	6 mm	0.236 in	6.8 µF	-55 C	125 °C	F	2.54 mm	0.1 in	35 V	Radial	General Purpose	2.5 Ohm
