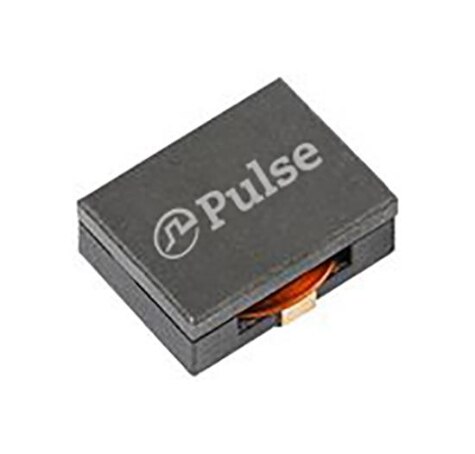

PA5119.XXXNLT Series
Power Inductors - SMD 0.42uH 16A 42Apk DCR=3.15mohms
Manufacturer: Pulse Electronics
Catalog
Power Inductors - SMD 0.42uH 16A 42Apk DCR=3.15mohms
Beta
⌘K
Power Inductors - SMD 0.42uH 16A 42Apk DCR=3.15mohms
Power Inductors - SMD 0.42uH 16A 42Apk DCR=3.15mohms
Power Inductors - SMD 0.42uH 16A 42Apk DCR=3.15mohms
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Current Rating (Amps) | DC Resistance (DCR) | Package / Case | Shielding | Current - Saturation (Isat) | Inductance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Inductance Frequency - Test | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 0.197 in | 5 mm | Surface Mount | 16 A | 3.15 mOhm | Nonstandard | Shielded | 42 A | 420 nH | 0.48 in | 0.386 in | 12.2 mm | 9.8 mm | 100 kHz | 10 % | 130 °C | -40 C |
