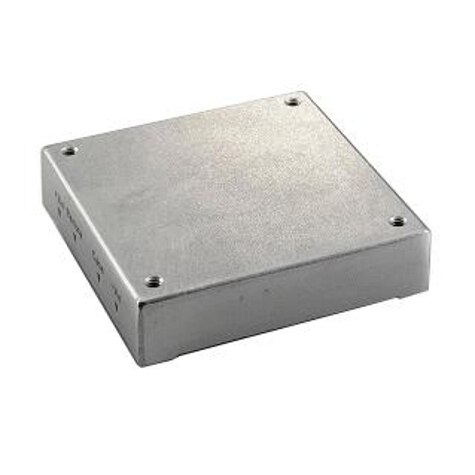

Isolated DC/DC Converters - DIN Rail Mount DC-DC Converter, Half Brick with Heatsink, DIN Mount, 100 Watt, 4:1 Input Range, Single Output, 48VDC Input, 47uF/100V, 24VDC Output, Negative Logic
Isolated DC/DC Converters - DIN Rail Mount DC-DC Converter, Half Brick with Heatsink, DIN Mount, 100 Watt, 4:1 Input Range, Single Output, 48VDC Input, 47uF/100V, 24VDC Output, Negative Logic
Isolated DC/DC Converters - DIN Rail Mount DC-DC Converter, Half Brick with Heatsink, DIN Mount, 100 Watt, 4:1 Input Range, Single Output, 48VDC Input, 47uF/100V, 24VDC Output, Negative Logic
| Part | Applications | Current - Output (Max) [Max] | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | DC Voltage - Input (Min) [Min] | Power (Watts) | Features | Approval Agency | Input Type | DC Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Output 1 | Supplier Device Package | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Type | Voltage - Input (Min) [Min] | Mounting Type | Standard Number | Control Features | Voltage - Input (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | ITE (Commercial) | 20 A | 1.5 kV | -40 °C | 100 °C | 1.03 " 26.2 mm | 2.54 in 64.6 mm | 3.98 in 101.2 mm | 82.5 % | 18 V | 66 W | Adjustable Output Remote On/Off Remote Sense | CE cURus | DC | 75 V | 1 | 3.3 V | |||||||||||
 Cincon Electronics Co. LTD | ITE (Commercial) | 3.57 A | 1.5 kV | -40 °C | 100 °C | 12.7 mm | 57.9 mm | 61 mm | 86 % | 100 W | OCP OTP OVP Remote On/Off SCP UVLO | CE cURus | 1 | 28 V | Half Brick | 2.28 in | 2.4 in | 0.5 in | Isolated Module | 18 V | Through Hole | 60950-1 | Active High Enable | 75 V | Half Brick | |||
Cincon Electronics Co. LTD | ITE (Commercial) | 3.57 A | 1.5 kV | -40 °C | 100 °C | 12.7 mm | 57.9 mm | 61 mm | 86 % | 100 W | OCP OTP OVP Remote On/Off SCP UVLO | CE cURus | 1 | 28 V | Half Brick | 2.28 in | 2.4 in | 0.5 in | Isolated Module | 18 V | Through Hole | 60950-1 | Active Low Enable | 75 V | Half Brick | |||
Cincon Electronics Co. LTD | ITE (Commercial) | 3.57 A | 1.5 kV | -40 °C | 100 °C | 12.7 mm | 57.9 mm | 61 mm | 86 % | 100 W | OCP OTP OVP Remote On/Off SCP UVLO | CE cURus | 1 | 28 V | Half Brick | 2.28 in | 2.4 in | 0.5 in | Isolated Module | 9 V | Through Hole | 60950-1 | Active Low Enable | 36 V | Half Brick | |||
 Cincon Electronics Co. LTD | ITE (Commercial) | 6.7 A | 1.5 kV | -40 °C | 100 °C | 1.03 " 26.2 mm | 2.54 in 64.6 mm | 3.98 in 101.2 mm | 87 % | 9 V | 100 W | Adjustable Output Remote On/Off Remote Sense | CE cURus | DC | 36 V | 1 | 15 V | |||||||||||
Cincon Electronics Co. LTD | ITE (Commercial) | 2.08 A | 1.5 kV | -40 °C | 100 °C | 1.03 " 26.2 mm | 2.54 in 64.6 mm | 3.98 in 101.2 mm | 84.5 % | 18 V | 100 W | Adjustable Output Remote On/Off Remote Sense | CE cURus | DC | 75 V | 1 | 48 V | |||||||||||
 Cincon Electronics Co. LTD | ITE (Commercial) | 2.08 A | 1.5 kV | -40 °C | 100 °C | 12.7 mm | 57.9 mm | 61 mm | 82.5 % | 100 W | OCP OTP OVP Remote On/Off SCP UVLO | CE cURus | 1 | 48 V | Half Brick | 2.28 in | 2.4 in | 0.5 in | Isolated Module | 9 V | Through Hole | 60950-1 | Active Low Enable | 36 V | Half Brick | |||
Cincon Electronics Co. LTD | ITE (Commercial) | 4.17 A | 1.5 kV | -40 °C | 100 °C | 1.03 " 26.2 mm | 2.54 in 64.6 mm | 3.98 in 101.2 mm | 89 % | 18 V | 100 W | Adjustable Output Remote On/Off Remote Sense | CE cURus | DC | 75 V | 1 | 24 V |
