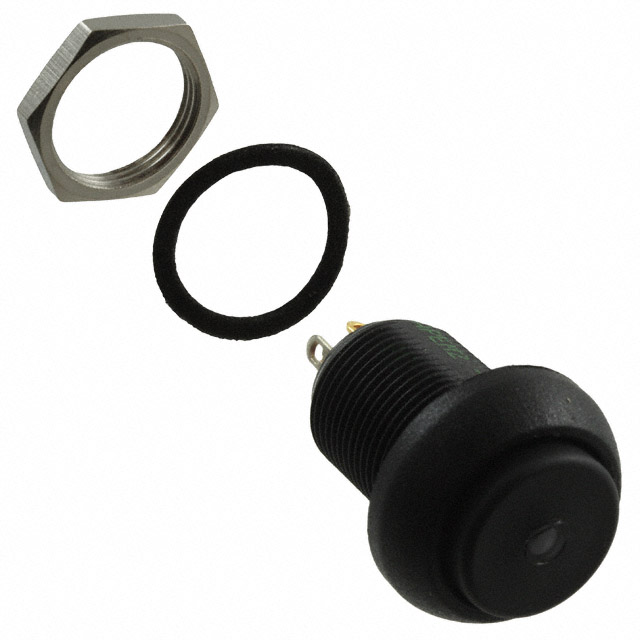

ILP3SA Series
Manufacturer: APEM Inc.
Beta
⌘K
SWITCH PUSHBUTTON SPST-NO 2A 24V
| Part | Electrical Life | Mechanical Life | Termination Style | Type | Circuit | Illumination Voltage (Nominal) | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Voltage Rating - DC | Ingress Protection | Switch Function | Features | Current Rating (Amps) | Color - Actuator/Cap | Mounting Type | Actuator Marking | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 200000 Cycles | 1000000 Cycles | Solder Lug | Illuminated Standard | SPST-NO | 2.1 VDC | 13.6 mm | 85 °C | -40 C | Button Round | 24 V | IP67 - Dust Tight Waterproof | Off-Mom | Epoxy Sealed Terminals | 2 A | Black | Panel Mount Front | No Marking | LED Yellow |
