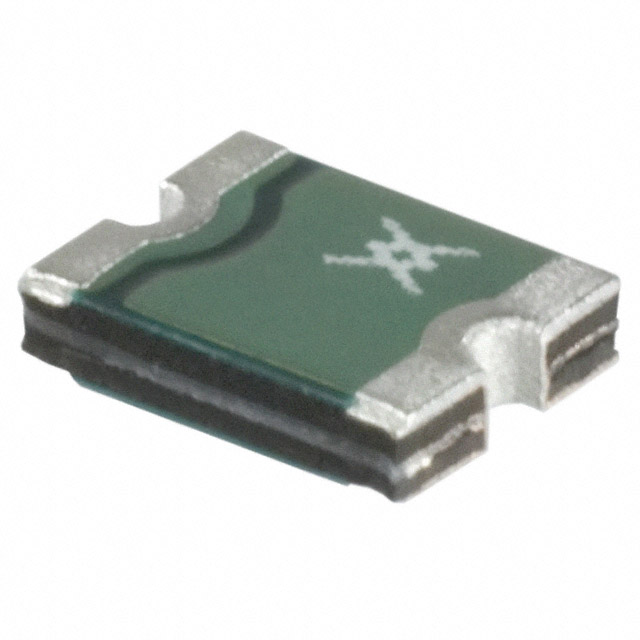

microASMD Series

Catalog

RESETTABLE FUSES - PPTC RF5161-000 1210 0.16A 30VDC 0.8W 0.7OHM

Part	Type	Time to Trip	Current - Hold (Ih) (Max) [Max]	Voltage - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Resistance - Initial (Ri) (Min) [Min]	Current - Max [Max]	Current - Trip (It)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max) [Max]	Thickness (Max) [Max]	Ratings	Resistance - Post Trip (R1) (Max) [Max]	Mounting Type	Grade	Qualification
LITTELFUSE MICROASMDCH016F-2	Polymeric	100 ms	160 mA	30 V	125 °C	-40 C	1210 (3225 Metric) Concave	700 mOhms	20 A	480 mA	3.22 mm	0.101 in	0.127 in	2.58 mm	0.85 mm	0.033 in	AEC-Q200	60 Ohms	Surface Mount
LITTELFUSE MICROASMD005F-2	Polymeric	1.5 s	50 mA	30 V	85 °C	-40 C	1210 (3225 Metric) Concave	3.6 Ohms	10 A	150 mA	3.22 mm	0.102 in	0.127 in	2.58 mm	0.67 mm	0.026 in		50 Ohms	Surface Mount	Automotive	AEC-Q200
