PNVT006 Series

Catalog

DC DC CONVERTER 0.6-5.5V

Part	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Control Features	Voltage - Input (Min) [Min]

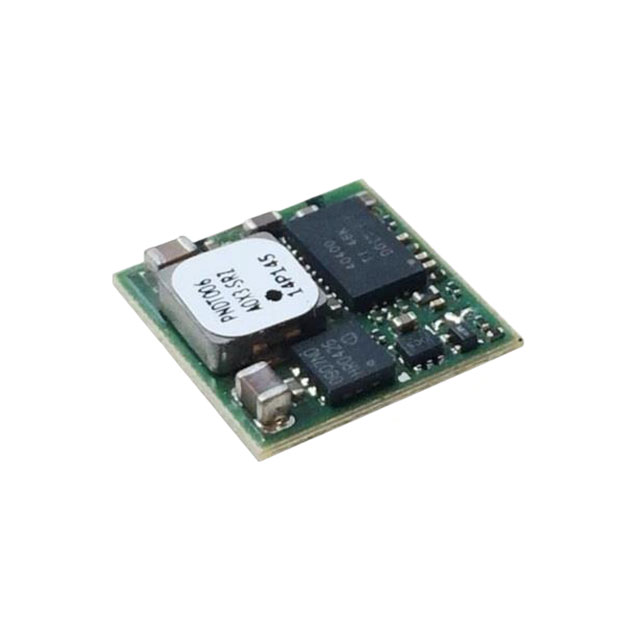

OmniOn Power™ PNVT006A0X3-SRZ	6 A	1	14.4 V	OCP OTP Remote On/Off UVLO	12.2 mm	0.48 in	0.48 in	2.8 mm	0.11 "	12.2 mm	92.3 %	0.6 V	5.5 V	Non-Isolated PoL Module Digital	Module	85 °C	-40 C	ITE (Commercial)	Through Hole	Active Low Enable	3 V
OmniOn Power™ PNVT006A0X3-SRZ	6 A	1	14.4 V	OCP OTP Remote On/Off UVLO	12.2 mm	0.48 in	0.48 in	2.8 mm	0.11 "	12.2 mm	92.3 %	0.6 V	5.5 V	Non-Isolated PoL Module Digital	Module	85 °C	-40 C	ITE (Commercial)	Surface Mount	Active Low Enable	3 V
