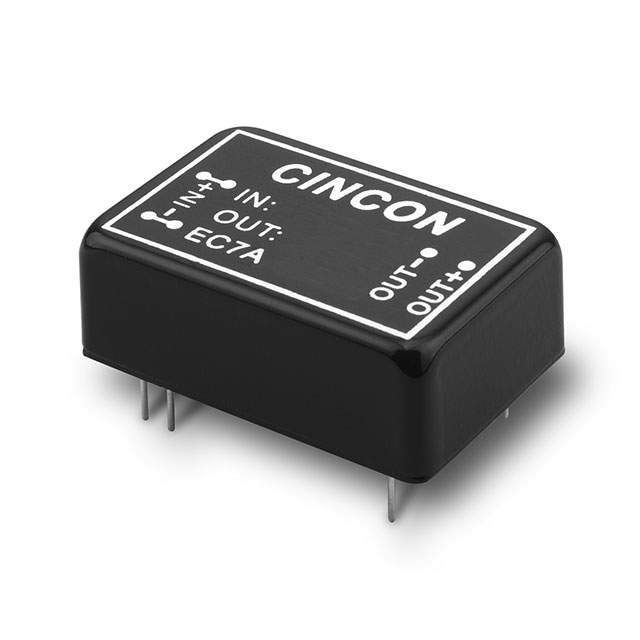

EC7A-48 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, 10 WATT, 2:1 INPUT RANGE, 36-75VDC INPUT, 2.5VDC OUTPUT, 1.5KVDC MIN. ISOLATION, BLACK COATED COPPER WITH NON-CONDUCTIVE BASE, DIP-24
| Part | Approval Agency | Voltage - Input (Max) [Max] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Standard Number | Number of Outputs | Type | Power (Watts) | Package / Case | Efficiency | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Mounting Type | Applications | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Voltage - Output 2 | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | CE cURus | 75 V | OCP OVP SCP UVLO | -40 °C | 85 °C | 60950-1 | 1 | Isolated Module | 7.5 W | 24-DIP Module 8 Leads | 85 % | 3 A | 36 V | Through Hole | ITE (Commercial) | 2.5 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 1.5 kV | |||||
Cincon Electronics Co. LTD | CE cURus | 75 V | OCP OVP SCP UVLO | -40 °C | 85 °C | 60950-1 | 1 | Isolated Module | 10 W | 24-DIP Module 8 Leads | 85 % | 3 A | 36 V | Through Hole | ITE (Commercial) | 3.3 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 1.5 kV | |||||
Cincon Electronics Co. LTD | CE cURus | 75 V | OCP OVP SCP UVLO | -40 °C | 85 °C | 60950-1 | 2 | Isolated Module | 10 W | 24-DIP Module 8 Leads | 88 % | 416 mA | 36 V | Through Hole | ITE (Commercial) | 12 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 1.5 kV | -12 V | 416 mA | |||
Cincon Electronics Co. LTD | CE cURus | 75 V | OCP OVP SCP UVLO | -40 °C | 85 °C | 60950-1 | 1 | Isolated Module | 10 W | 24-DIP Module 8 Leads | 88 % | 2 A | 36 V | Through Hole | ITE (Commercial) | 5 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 1.5 kV | |||||

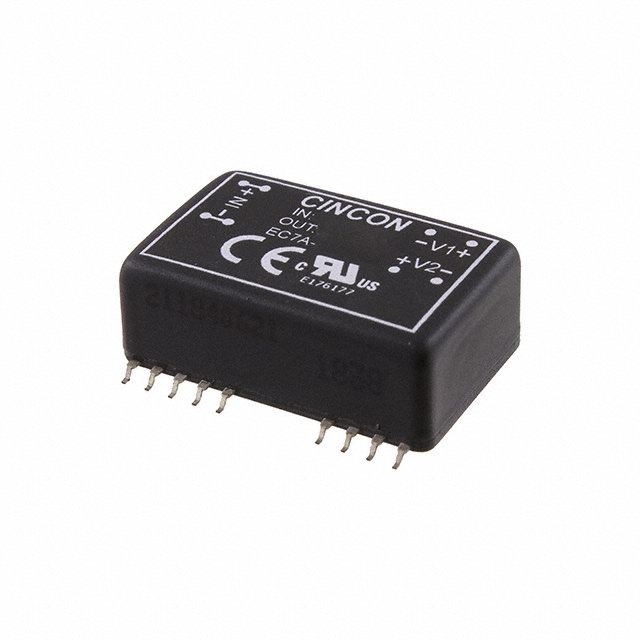

 Cincon Electronics Co. LTD | CE cURus | 75 V | OCP OVP SCP UVLO | -40 °C | 85 °C | 60950-1 | 1 | Isolated Module | 10 W | 24-SMD Module 18 Leads | 88 % | 666 mA | 36 V | Surface Mount | ITE (Commercial) | 15 V | 0.8 " | 0.45 in | 31.8 mm | 1.25 in | 1.5 kV | 20.3 mm | 11.4 mm | |||||
Cincon Electronics Co. LTD | CE cURus | 75 V | OCP OVP SCP UVLO | -40 °C | 85 °C | 60950-1 | 2 | Isolated Module | 10 W | 24-SMD Module 18 Leads | 86 % | 36 V | Surface Mount | ITE (Commercial) | 15 V | 0.8 " | 0.45 in | 31.8 mm | 1.25 in | 1.5 kV | -15 V | 20.3 mm | 11.4 mm | 333 mA | ||||
Cincon Electronics Co. LTD | CE cURus | 75 V | OCP OVP SCP UVLO | -40 °C | 85 °C | 60950-1 | 1 | Isolated Module | 10 W | 24-SMD Module 18 Leads | 88 % | 2 A | 36 V | Surface Mount | ITE (Commercial) | 5 V | 0.8 " | 0.45 in | 31.8 mm | 1.25 in | 1.5 kV | 20.3 mm | 11.4 mm | |||||
Cincon Electronics Co. LTD | CE cURus | 75 V | OCP OVP SCP UVLO | -40 °C | 85 °C | 60950-1 | 2 | Isolated Module | 10 W | 24-DIP Module 8 Leads | 86 % | 36 V | Through Hole | ITE (Commercial) | 15 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 1.5 kV | -15 V | 333 mA | ||||
Cincon Electronics Co. LTD | CE cURus | 75 V | OCP OVP SCP UVLO | -40 °C | 85 °C | 60950-1 | 2 | Isolated Module | 10 W | 24-SMD Module 18 Leads | 88 % | 416 mA | 36 V | Surface Mount | ITE (Commercial) | 12 V | 0.8 " | 0.45 in | 31.8 mm | 1.25 in | 1.5 kV | -12 V | 416 mA | 20.3 mm | 11.4 mm | |||
Cincon Electronics Co. LTD | CE cURus | 75 V | OCP OVP SCP UVLO | -40 °C | 85 °C | 60950-1 | 1 | Isolated Module | 10 W | 24-SMD Module 18 Leads | 89 % | 835 mA | 36 V | Surface Mount | ITE (Commercial) | 12 V | 0.8 " | 0.45 in | 31.8 mm | 1.25 in | 1.5 kV | 20.3 mm | 11.4 mm |
