TPS92510 Series

1.5-A constant current buck converter for HB LEDs

Catalog

1.5-A constant current buck converter for HB LEDs

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output / Channel	Dimming	Number of Outputs	Mounting Type	Type	Package / Case	Package / Case	Topology	Supplier Device Package	Voltage - Supply (Min) [Min]	Frequency [Min]	Frequency [Max]	Applications	Supplied Contents	Outputs and Type	Outputs and Type	Utilized IC / Part	Contents	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Features
Texas Instruments TPS92510DGQR	-40 C	125 °C	1.5 A	PWM	1	Surface Mount	DC DC Regulator	10-MSOP 10-PowerTFSOP	0.118 " 3 mm	Step-Down (Buck)	10-HVSSOP	3.5 V	100 kHz	2.5 MHz	Lighting
Texas Instruments TPS92510DGQ	-40 C	125 °C	1.5 A	PWM	1	Surface Mount	DC DC Regulator	10-MSOP 10-PowerTFSOP	0.118 " 3 mm	Step-Down (Buck)	10-HVSSOP	3.5 V	100 kHz	2.5 MHz	Lighting

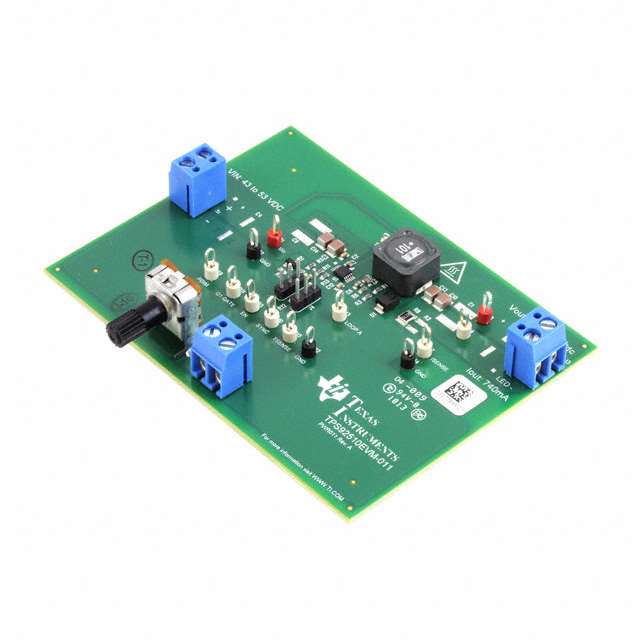

Texas Instruments TPS92510EVM-011			740 mA													Board(s)	1	1 Non-Isolated Output Non-Isolated	TPS92510	Board(s)	43 VDC	53 V	38.4 V	13.8 V	Dimmable

Catalog

1.5-A constant current buck converter for HB LEDs

Description

The TPS92510 is a 60-V, 1.5-A peak current-mode step-down converter with an integrated high-side MOSFET. It is specifically designed for driving high-brightness LEDs with a constant current. The tight-tolerance, 200-mV internal reference voltage reduces power dissipation in the current-sense resistor. A dedicated pulse width modulation input pin allows linear control of the light output. The TPS92510 integrates a thermal foldback feature that reduces the average output current to ensure that the sensed LED temperature never exceeds a specific value, improving the reliability of the overall system. An integrated frequency synchronization feature allows a reduction of unwanted beat- frequencies in multi-string applications and simplifies EMI filtering. The adjustable input voltage UVLO feature accommodates the various deep discharge levels of multiple battery types. The TPS92510 includes cycle-by-cycle overcurrent protection, and thermal shutdown protection. It is available in a 10-pin MSOP PowerPAD™ package. The TPS92510 is a 60-V, 1.5-A peak current-mode step-down converter with an integrated high-side MOSFET. It is specifically designed for driving high-brightness LEDs with a constant current. The tight-tolerance, 200-mV internal reference voltage reduces power dissipation in the current-sense resistor. A dedicated pulse width modulation input pin allows linear control of the light output. The TPS92510 integrates a thermal foldback feature that reduces the average output current to ensure that the sensed LED temperature never exceeds a specific value, improving the reliability of the overall system. An integrated frequency synchronization feature allows a reduction of unwanted beat- frequencies in multi-string applications and simplifies EMI filtering. The adjustable input voltage UVLO feature accommodates the various deep discharge levels of multiple battery types. The TPS92510 includes cycle-by-cycle overcurrent protection, and thermal shutdown protection. It is available in a 10-pin MSOP PowerPAD™ package.
