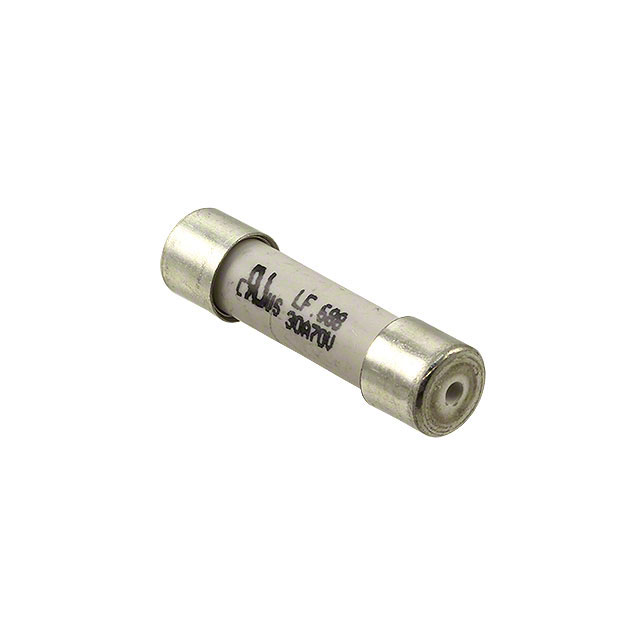

688030 Series

FUSE 70VDC 6x25 PT Ammo Pack Pb-free 30A

Catalog

FUSE 70VDC 6x25 PT Ammo Pack Pb-free 30A

Part	Breaking Capacity @ Rated Voltage	Mounting Type	DC Cold Resistance	Package / Case	Approval Agency	Current Rating (Amps)	Fuse Type	Melting I²t	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Voltage Rating - DC
Littelfuse/Commercial Vehicle Products 0688030.MAT4P	2.5 kA	Requires Holder	2.1 Ohms	Cartridge Non-Standard	cURus TUV	30 A	Cartridge Ceramic	4200	0.248 in	25.2 mm	6.3 mm	0.992 in	-55 °C	125 °C
Littelfuse/Commercial Vehicle Products 0688030.MXP	2.5 kA	Requires Holder	2.1 Ohms	Cartridge Non-Standard	cURus TUV	30 A	Cartridge Ceramic	4200	0.248 in	25.2 mm	6.3 mm	0.992 in	-55 °C	125 °C	Slow Blow	70 V

FUSE 70VDC 6x25 PT Ammo Pack Pb-free 30A

• High Interrupting Rating: 2500A@70Vdc

• High Surge Withstand Capability

• Compact form factor with cartridge and axial lead version

• Lead-Free, RoHS compliant, Halogen-Free

• Operating Temperature: -55°C to 125 °C

The 688 series is a 70Vdc rated slow blow ceramic cartridge fuse in 6x25mm form factor, designed in accordance to UL248-14 standard.
