000978 Series
Manufacturer: Molex
Beta
⌘K

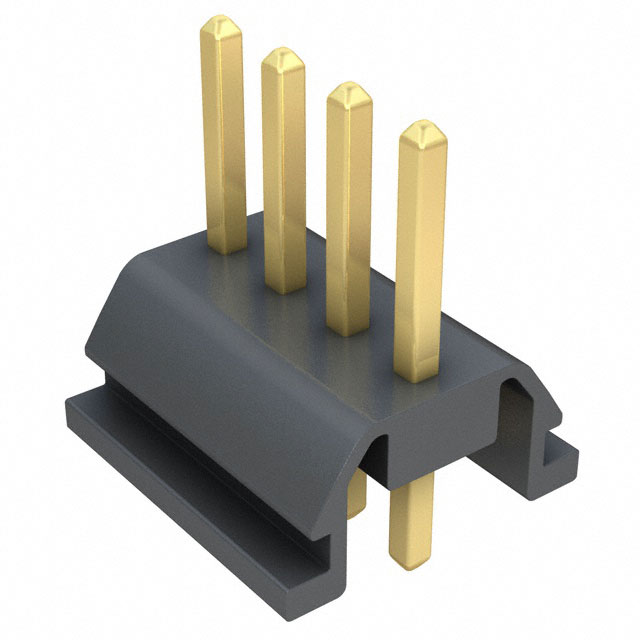

CONN HEADER VERT 4POS 3.96MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Number of Positions | Contact Type | Contact Length - Mating | Contact Length - Mating | Contact Material | Number of Rows | Connector Type | Termination | Insulation Material | Pitch - Mating | Pitch - Mating | Overall Contact Length | Overall Contact Length | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Shrouding | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Shape | Insulation Color | Fastening Type | Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 20 µin | 0.51 µm | Automotive General Purpose Industrial Medical Telecommunications | 4 | Male Pin | 0.63 in | 16 mm | Brass | 1 | Header | Solder | Nylon 6/6 Polyamide (PA66) | 3.96 mm | 0.156 in | 35.05 mm | 1.38 in | UL94 V-2 | 0.635 in | 16.13 mm | Gold | 0.51 µm | 20 µin | Gold | Unshrouded | 6.35 mm | 0.25 in | All | Square | Natural | Push-Pull | Board to Cable/Wire | Panel Mount Snap-In Through Hole |
