DC12.5102 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Features	Ingress Protection	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Switch Features	Current Rating - Appliance Inlet	Filter Type	Mounting Type	Approval Agency	Connector Type	Current Rating - Filter	Voltage Rating - Appliance Inlet	Material Flammability Rating	Termination	Termination	Termination	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]

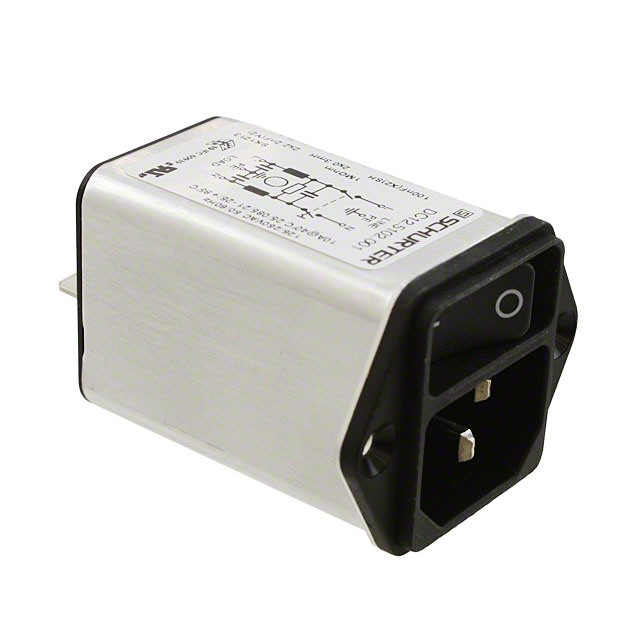

SCHURTER Inc. DC12.5102.001	Shielded V-Lock Notch	IP40	IEC 320-C14	33.1 mm	29.1 mm	Switch On-Off	10 A	Filtered (EMI RFI) - Commercial	Flange Panel Mount	CQC cULus ENEC	Receptacle Male Blades - Module	10 A	250 VAC	UL94 V-0	6.3 mm	Quick Connect	0.25 "

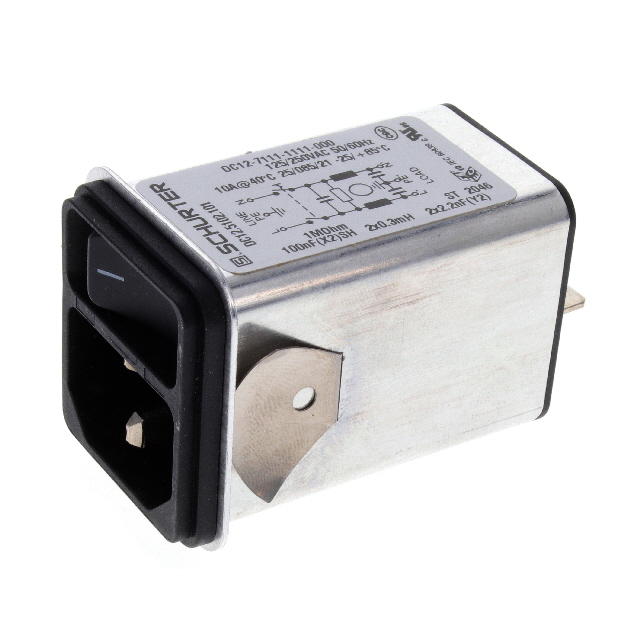

SCHURTER Inc. DC12.5102.101	Shielded V-Lock Notch	IP40	IEC 320-C14	33.1 mm	29.4 mm	Switch On-Off	10 A	Filtered (EMI RFI) - Commercial	Panel Mount Snap-In	CQC cULus ENEC	Receptacle Male Blades - Module	10 A	250 VAC	UL94 V-0	6.3 mm	Quick Connect	0.25 "	0.118 in	3 mm	1 mm	0.039 in

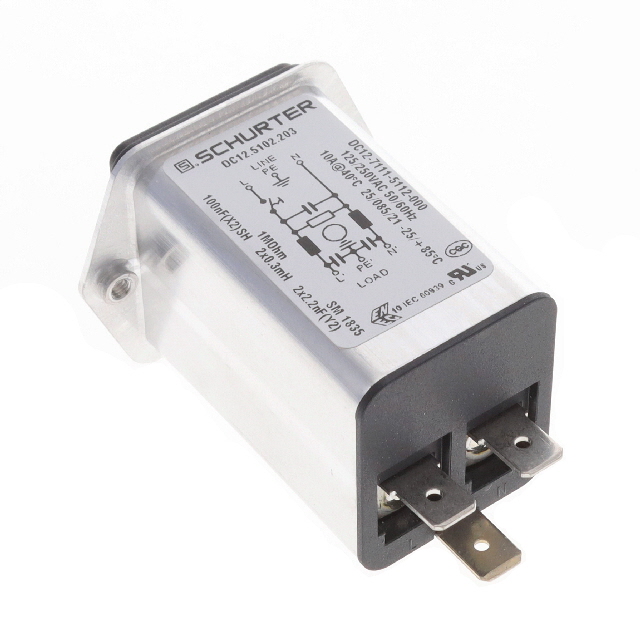

SCHURTER Inc. DC12.5102.203	Shielded V-Lock Notch	IP40	IEC 320-C14	34.4 mm	30.4 mm	Switch On-Off	10 A	Filtered (EMI RFI) - Commercial	Flange Panel Mount	CQC cULus ENEC	Receptacle Male Blades - Module	10 A	250 VAC	UL94 V-0	6.3 mm	Quick Connect	0.25 "
