104TL2 Series

Catalog

SWITCH TOGGLE 4PDT 7.5A 115V

Part	Actuator Material	Actuator Type	Actuator Length [x]	Voltage Rating - DC	Illumination	Switch Function	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Circuit	Bushing Thread	Mounting Type	Ingress Protection
Honeywell Sensing and Productivity Solutions 104TL2-7	Nickel Plated	Standard Round	17.27 mm	30 V	Non-Illuminated	Mom-Off-Mom	115 V	12.4 mm	-65 ░C	71 °C	7.5 A	IWTS	4PDT	15/32-32	Panel Mount	Environment Sealed

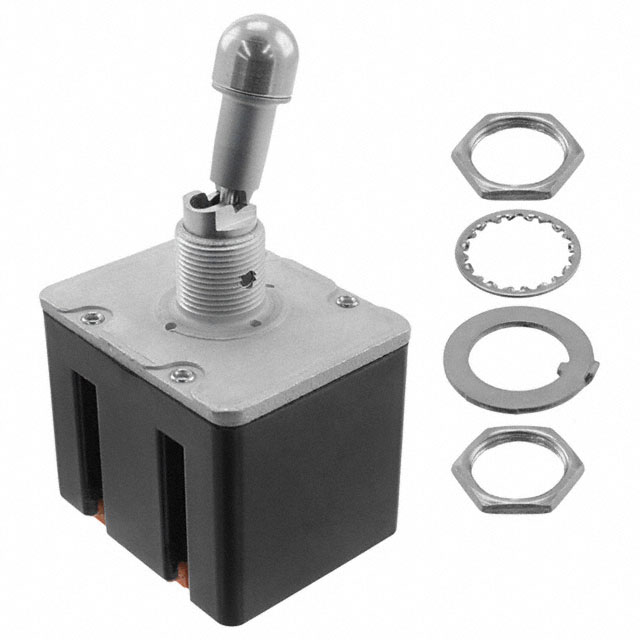

Honeywell Sensing and Productivity Solutions 104TL2-1N	Nickel Plated	Locking Lever	26.67 mm	30 V	Non-Illuminated	On-Off-On	115 V	12.4 mm	-65 ░C	71 °C	7.5 A	IWTS	4PDT	15/32-32	Panel Mount	Environment Sealed

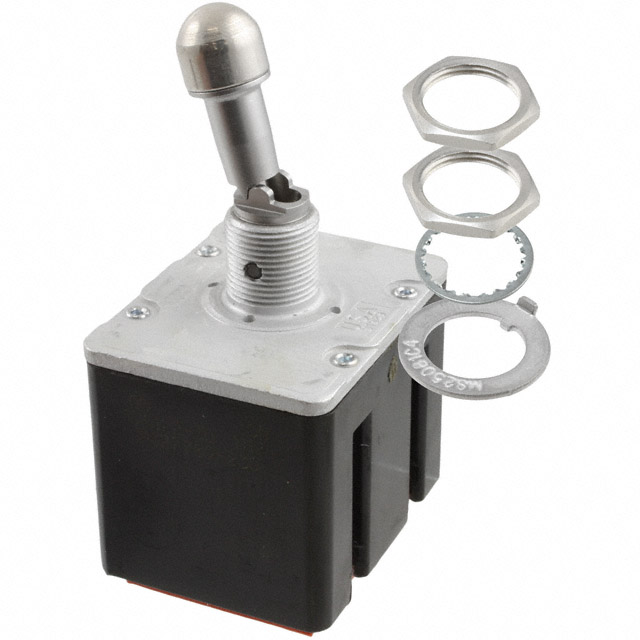

Honeywell Sensing and Productivity Solutions 104TL2-3D	Nickel Plated	Locking Lever	26.67 mm	30 V	Non-Illuminated	On-On	115 V	12.4 mm	-65 ░C	71 °C	7.5 A	IWTS	4PDT	15/32-32	Panel Mount	Environment Sealed
Honeywell Sensing and Productivity Solutions 104TL286-7E	Nickel Plated	Locking Lever	26.67 mm	30 V	Non-Illuminated	Mom-Off-Mom	115 V	12.4 mm	-65 ░C	71 °C	7.5 A	IWTS	4PDT	15/32-32	Panel Mount	Environment Sealed
Honeywell Sensing and Productivity Solutions 104TL2-10A	Nickel Plated	Locking Lever	26.67 mm	30 V	Non-Illuminated	On-On-On	115 V	12.4 mm	-65 ░C	71 °C	7.5 A	IWTS	4PDT	15/32-32	Panel Mount	Environment Sealed
Honeywell Sensing and Productivity Solutions 104TL2-2	Nickel Plated	Standard Round	17.27 mm	30 V	Non-Illuminated	On-Off	115 V	12.4 mm	-65 ░C	71 °C	7.5 A	IWTS		15/32-32	Panel Mount	Environment Sealed
