208035 Series
ConnTAK50 Header, Single Row, Vertical, Surface Mount, 2 Circuits, Key C, Blue
Manufacturer: Molex
Catalog
ConnTAK50 Header, Single Row, Vertical, Surface Mount, 2 Circuits, Key C, Blue
Beta
⌘K
ConnTAK50 Header, Single Row, Vertical, Surface Mount, 2 Circuits, Key C, Blue
ConnTAK50 Header, Single Row, Vertical, Surface Mount, 2 Circuits, Key C, Blue
ConnTAK50 Header, Single Row, Vertical, Surface Mount, 2 Circuits, Key C, Blue
| Part | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Number of Rows | Termination | Style | Insulation Color | Number of Positions Loaded | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Material | Connector Type | Mounting Type | Contact Finish - Post | Insulation Material | Insulation Height | Insulation Height | Contact Shape | Shrouding | Material Flammability Rating | Current Rating (Amps) | Voltage Rating | Number of Positions Loaded | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

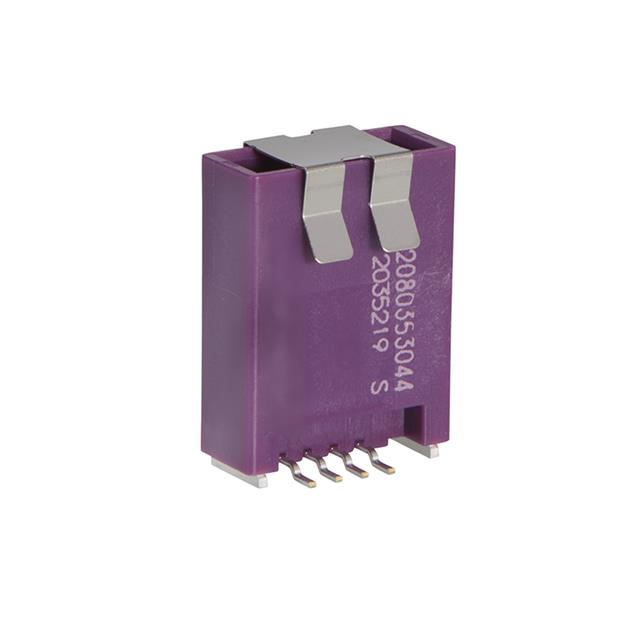

 Molex | Male Pin | -40 °C | 105 ░C | 1 µm | 39.4 µin | 3 A | 1 çm | 39.4 çin | Pick and Place | 1 | Solder | Board to Cable/Wire | Violet | 4 | 4 | 0.071 in | 1.8 mm | Brass | Header | Surface Mount | Tin | Polyamide (PA9T) Nylon 9T Glass Filled | 19 mm | 0.748 in | Square | Shrouded - 4 Wall | UL94 V-0 | ||||

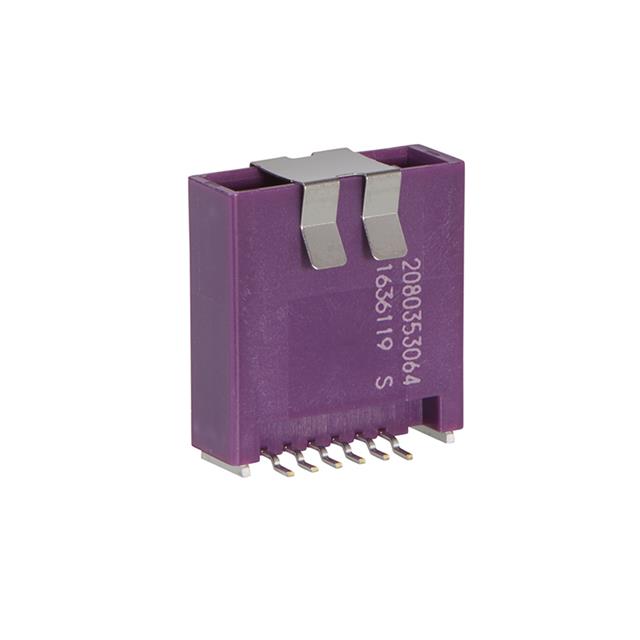

 Molex | Male Pin | -40 °C | 105 ░C | 1 µm | 39.4 µin | 3 A | 1 çm | 39.4 çin | Pick and Place | 1 | Solder | Board to Cable/Wire | Violet | 6 | 0.071 in | 1.8 mm | Brass | Header | Surface Mount | Tin | Polyamide (PA9T) Nylon 9T Glass Filled | 19 mm | 0.748 in | Square | Shrouded - 4 Wall | UL94 V-0 | |||||

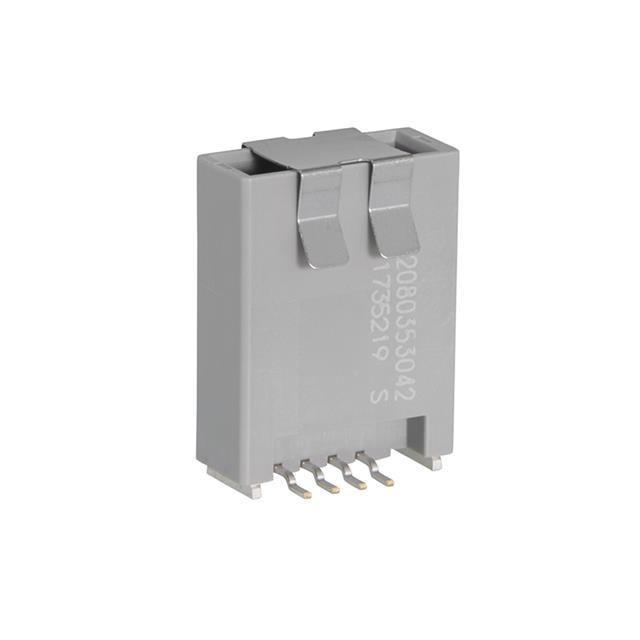

 Molex | Male Pin | -40 °C | 105 ░C | 1 µm | 39.4 µin | Pick and Place | 1 | Solder | Board to Cable/Wire | Natural | 4 | 0.071 in | 1.8 mm | Brass | Header | Surface Mount | Polyamide (PA9T) Nylon 9T Glass Filled | 19 mm | 0.748 in | Square | Shrouded - 4 Wall | UL94 V-0 | Varies by Wire Gauge | 14 VAC/DC | All | Latch Holder | |||||

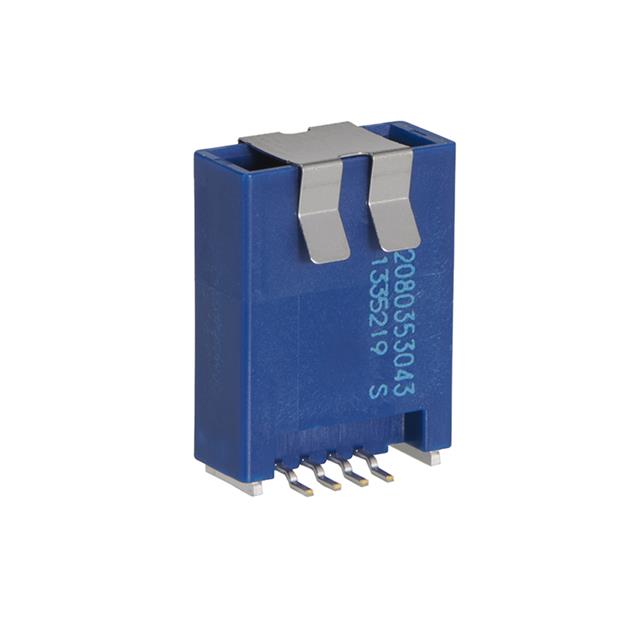

 Molex | Male Pin | -40 °C | 105 ░C | 1 µm | 39.4 µin | Pick and Place | 1 | Solder | Board to Cable/Wire | Blue | 4 | 0.071 in | 1.8 mm | Brass | Header | Surface Mount | Polyamide (PA9T) Nylon 9T Glass Filled | 19 mm | 0.748 in | Square | Shrouded - 4 Wall | UL94 V-0 | Varies by Wire Gauge | 14 VAC/DC | All | Latch Holder |
