123NQ Series

Catalog

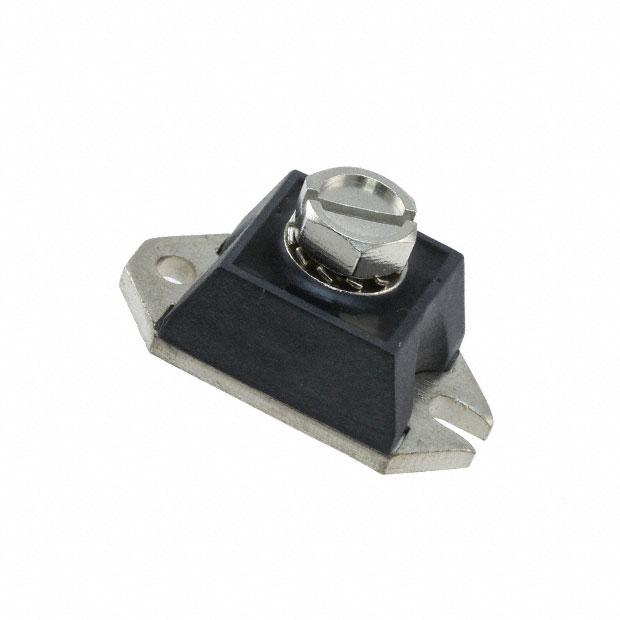

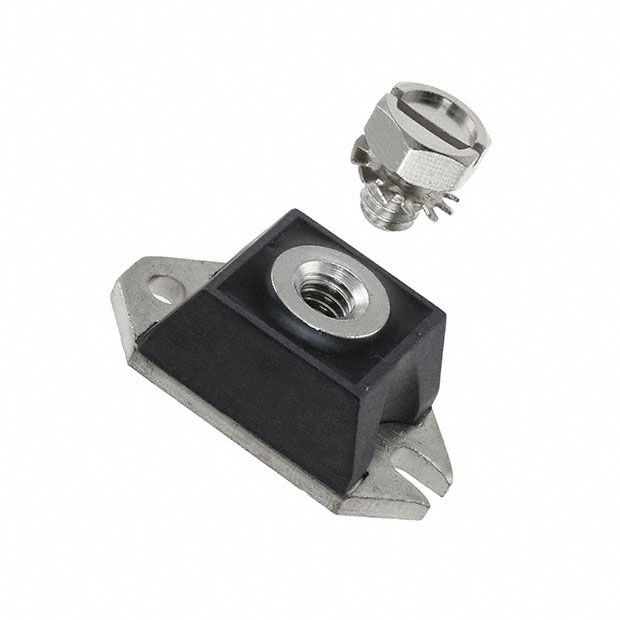

DIODE SCHOTTKY 80V 120A PRM1-1

Part	Mounting Type	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Technology	Current - Average Rectified (Io)	Package / Case	Current - Reverse Leakage	Voltage - DC Reverse (Vr) (Max)	Capacitance	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Voltage - Forward (Vf) (Max)	Package Name	Supplier Device Package
SMC Diode Solutions 123NQ080-1	Chassis Mount	175 °C	-55 °C	Schottky	120 A	HALF-PAK	3 mA	80 V	2650 pF	500 ns	200 mA	910 mV	Half Module Pak PRM1-1 PRM1-1 (Half Pak Module)	PRM1-1
SMC Diode Solutions 123NQ100R-1	Chassis Mount	175 °C	-55 °C	Schottky	120 A	HALF-PAK	3 mA	100 V	2650 pF	500 ns	200 mA	910 mV	Half Module Pak PRM1-1 PRM1-1 (Half Pak Module)	PRM1-1
SMC Diode Solutions 123NQ080R-1	Chassis Mount	175 °C	-55 °C	Schottky	120 A	HALF-PAK	3 mA	80 V	2650 pF	500 ns	200 mA	910 mV	Half Module Pak PRM1-1 PRM1-1 (Half Pak Module)	PRM1-1
