EGN.0M Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Primary Material	Ingress Protection	Current Rating (Amps)	Fastening Type	Shell Material	Shell Size - Insert	Shell Finish	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Color	Shielding	Connector Type	Number of Positions	Contact Material	Insert Material	Contact Finish - Mating	Mounting Feature	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Contact Type	Contact Termination	Contact Size	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Finish
LEMO EGN.0M.304.XLN	Metal	IP68 - Dust Tight Waterproof	7 A	Threaded	Aluminum Alloy	304	Nickel	Panel Mount Through Hole	1.5 Ám	59 Áin	Aerospace Automotive Aviation Military	Gray	Shielded	Receptacle Female Sockets	4	Bronze	Polyetheretherketone (PEEK)	Gold	Bulkhead - Rear Side Nut	Solder	200 °C	-55 C	N (Normal)
LEMO EGN.0M.305.XLM	Metal	IP68 - Dust Tight Waterproof	6.5 A	Threaded	Aluminum Alloy	305	Nickel	Panel Mount	1.5 Ám	59 Áin	Aerospace Automotive Aviation Military	Gray	Shielded	Receptacle Female Sockets	5	Bronze	Polyetheretherketone (PEEK)	Gold	Bulkhead - Rear Side Nut	Crimp	200 °C	-55 C	N (Normal)

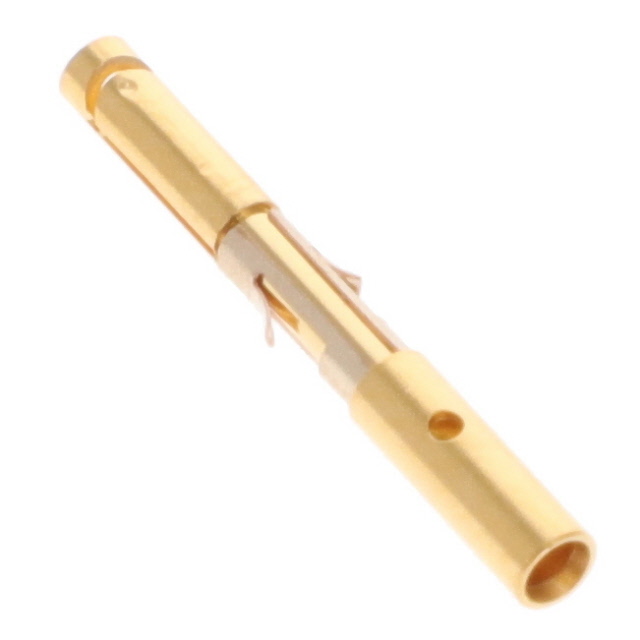

LEMO EGN.0M.660.ZZM																Bronze								Socket	Crimp	0.9 mm	Signal Machined	24 AWG	20 AWG	Gold

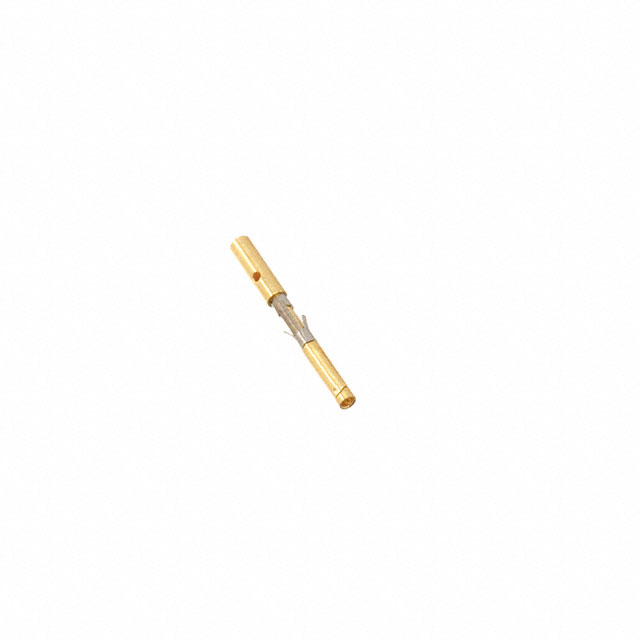

LEMO EGN.0M.655.ZZM																Bronze								Socket	Crimp	0.7 mm	Signal Machined	26 AWG	22 AWG	Gold
LEMO EGN.0M.305.XLN	Metal	IP68 - Dust Tight Waterproof	6.5 A	Threaded	Aluminum Alloy	305	Nickel	Panel Mount Through Hole	1.5 Ám	59 Áin	Aerospace Automotive Aviation Military	Gray	Shielded	Receptacle Female Sockets	5	Bronze	Polyetheretherketone (PEEK)	Gold	Bulkhead - Rear Side Nut	Solder	200 °C	-55 C	N (Normal)
