C4RXS-1 Series

Catalog

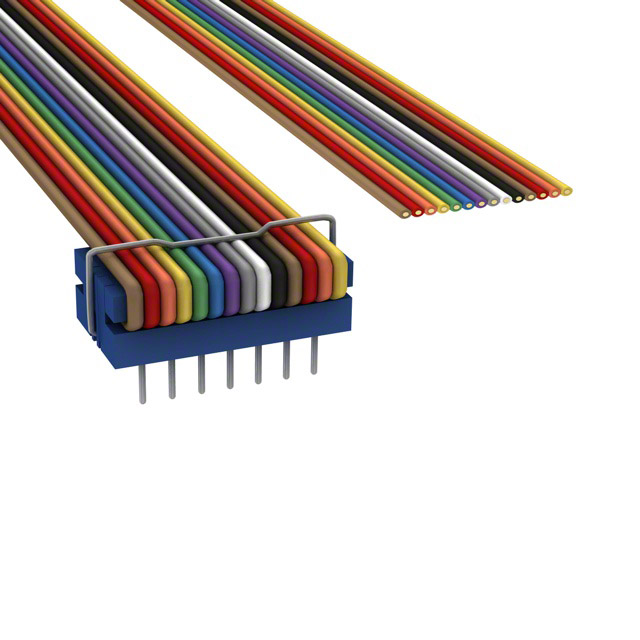

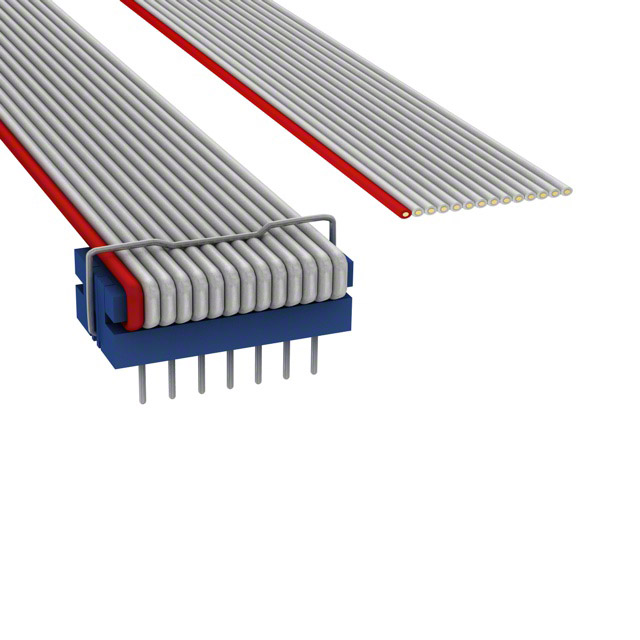

DIP CABLE - CDR14S/AE14M/X

Part	Pitch - Cable	Pitch - Cable	Connector Type	Length [x]	Length [x]	Shielding	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Usage	Pitch - Connector	Pitch - Connector	Number of Positions	Number of Rows [custom]	Features	Contact Finish	Color	Length	Length	Length
CW Industries C4RXS-1418M	0.05 in	1.27 mm	DIP to Cable	457.2 mm	1.5 ft	Unshielded	IDC	2.54 µm	100 µin	Board In Socket (0.3")	0.1 in	2.54 mm	14	2	Strain Relief	Tin	Multiple Ribbon
CW Industries C4RXS-1618G	0.05 in	1.27 mm	DIP to Cable	457.2 mm	1.5 ft	Unshielded	IDC	2.54 µm	100 µin	Board In Socket (0.3")	0.1 in	2.54 mm	16	2	Strain Relief	Tin
CW Industries C4RXS-1636G	0.05 in	1.27 mm	DIP to Cable			Unshielded	IDC	2.54 µm	100 µin	Board In Socket (0.3")	0.1 in	2.54 mm	16	2	Strain Relief	Tin		91.44 cm	3 ft
CW Industries C4RXS-1618M	0.05 in	1.27 mm	DIP to Cable	457.2 mm	1.5 ft	Unshielded	IDC	2.54 µm	100 µin	Board In Socket (0.3")	0.1 in	2.54 mm	16	2	Strain Relief	Tin	Multiple Ribbon
CW Industries C4RXS-1406G	0.05 in	1.27 mm	DIP to Cable			Unshielded	IDC	2.54 µm	100 µin	Board In Socket (0.3")	0.1 in	2.54 mm	14	2	Strain Relief	Tin		152.4 mm	0.5 '	6 "
CW Industries C4RXS-1606M	0.05 in	1.27 mm	DIP to Cable			Unshielded	IDC	2.54 µm	100 µin	Board In Socket (0.3")	0.1 in	2.54 mm	16	2	Strain Relief	Tin	Multiple Ribbon	152.4 mm	0.5 '	6 "
CW Industries C4RXS-1436G	0.05 in	1.27 mm	DIP to Cable			Unshielded	IDC	2.54 µm	100 µin	Board In Socket (0.3")	0.1 in	2.54 mm	14	2	Strain Relief	Tin		91.44 cm	3 ft
CW Industries C4RXS-1436M	0.05 in	1.27 mm	DIP to Cable			Unshielded	IDC	2.54 µm	100 µin	Board In Socket (0.3")	0.1 in	2.54 mm	14	2	Strain Relief	Tin	Multiple Ribbon	91.44 cm	3 ft
CW Industries C4RXS-1606G	0.05 in	1.27 mm	DIP to Cable			Unshielded	IDC	2.54 µm	100 µin	Board In Socket (0.3")	0.1 in	2.54 mm	16	2	Strain Relief	Tin		152.4 mm	0.5 '	6 "
CW Industries C4RXS-1406M	0.05 in	1.27 mm	DIP to Cable			Unshielded	IDC	2.54 µm	100 µin	Board In Socket (0.3")	0.1 in	2.54 mm	14	2	Strain Relief	Tin	Multiple Ribbon	152.4 mm	0.5 '	6 "
