9GA0524 Series

Catalog

FAN AXIAL 52X15MM 24VDC WIRE

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Voltage - Rated	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Bearing Type	Static Pressure	Static Pressure	Noise	Weight [custom]	Weight [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Approval Agency	Termination	RPM	Fan Type	Air Flow	Air Flow	Features

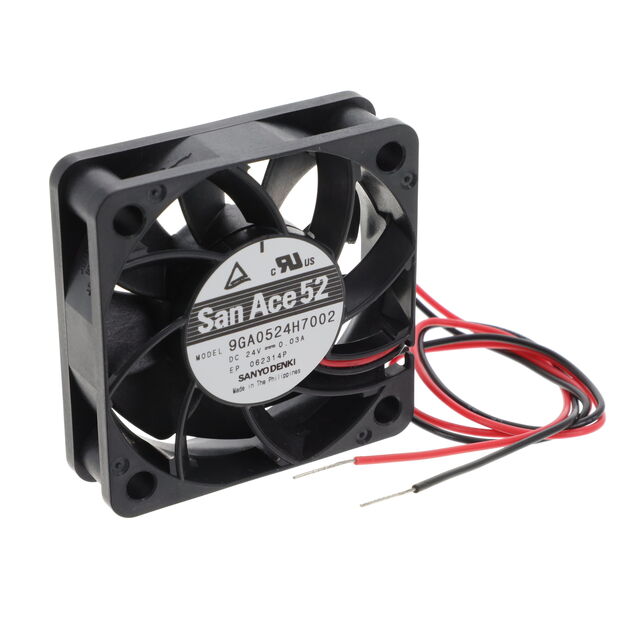

Sanyo Denki America Inc. 9GA0524H7002	Plastic	Plastic	30 mA	40000 Hrs	24 VDC	Square	52 mm	52 mm	15 mm	Ball	0.11 in H2O	27.4 Pa	22 dB(A)	0.089 lb	40.37 g	-20 ░C	70 °C	720 mW	CSA TUV UL	2 Wire Leads	4300 RPM	Tubeaxial	9.7 CFM	0.272 m³/min
Sanyo Denki America Inc. 9GA0524M7001	Plastic	Plastic	0.02 A	40000 Hrs	24 VDC	Square	52 mm	52 mm	15 mm	Ball	0.068 in H2O	17 Pa	16 dB	0.089 lb	40.37 g	-20 ░C	70 °C	0.48 W	CSA TUV UL	3 Wire Leads	3400 RPM	Tubeaxial	7.6 CFM	0.213 mł/min	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0524G7001	Plastic	Plastic	70 mA	40000 Hrs	24 VDC	Square	52 mm	52 mm	15 mm	Ball	0.367 in H2O	91.5 Pa	38 dB(A)	0.089 lb	40.37 g	-20 ░C	70 °C	1.68 W	CSA TUV UL	3 Wire Leads	7800 RPM	Tubeaxial	17.7 CFM	0.496 m³/min	Locked Rotor Protection Speed Sensor (Tach)

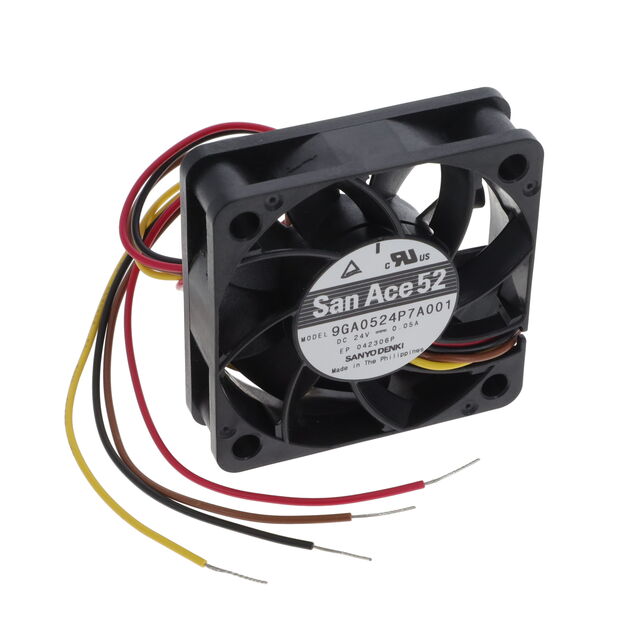

Sanyo Denki America Inc. 9GA0524P7A001	Plastic	Plastic	50 mA	40000 Hrs	24 VDC	Square	52 mm	52 mm	15 mm	Ball	0.237 in H2O	59 Pa	32 dB	0.088 lb	39.92 g	-20 ░C	70 °C	1.2 W	CSA TUV UL	4 Wire Leads	6300 RPM	Tubeaxial	14.1 CFM	0.395 m³/min	PWM Control Speed Sensor (Tach)
