T520 Series

Manufacturer: KEMET

Catalog

TANTALUM CAPACITORS - POLYMER 8V 33UF 2312 20% ESR=7MOHMS

Part	ESR (Equivalent Series Resistance)	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Capacitance	Package / Case	Mounting Type	Manufacturer Size Code	Tolerance	Lifetime @ Temp.	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Package / Case
KEMET T520U336M008ATE070	70 mOhm	8 V	0.059 "	1.5 mm	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	33 ÁF	2312 (6032 Metric)	Surface Mount	U	20 %	2000 Hrs	Molded

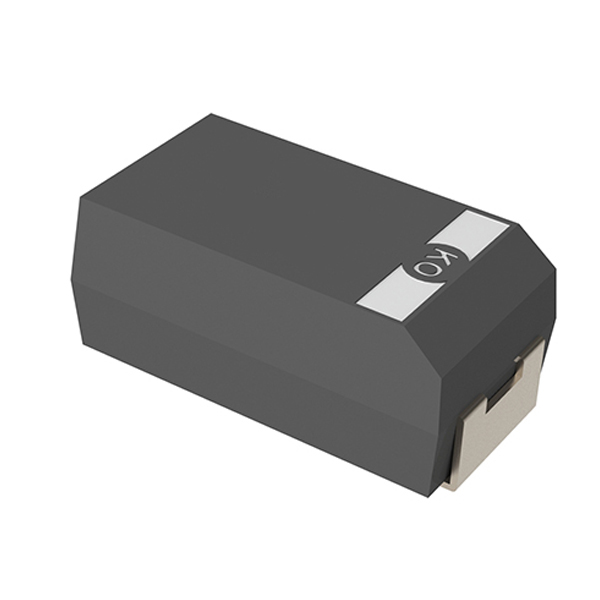

KEMET T520V687M006ATE025	25 mOhm	6.3 VDC	0.075 "		-55 C	105 ░C	4.3 mm	0.169 "	0.287 "	7.3 mm	General Purpose	680 µF	2917 (7343 Metric)	Surface Mount	V	20 %	2000 Hrs	Molded	1.9 mm
KEMET T520D337M006ANE025	25 mOhm	6.3 VDC			-55 C	105 ░C	4.3 mm	0.169 "	0.287 "	7.3 mm	General Purpose	330 µF	2917 (7343 Metric)	Surface Mount	D	20 %	2000 Hrs	Molded		0.122 in	3.1 mm
KEMET T520D107M010ATE0807280	80 mOhm	10 V			-55 C	105 ░C	4.3 mm	0.169 "	0.287 "	7.3 mm	General Purpose	100 µF	2917 (7343 Metric)	Surface Mount	D	20 %	2000 Hrs	Molded		0.122 in	3.1 mm
KEMET T520B227M2R5ATE035	35 mOhm	2.5 V			-55 C	105 ░C	2.8 mm	0.11 "	0.138 in	3.5 mm	General Purpose	220 µF	1411	Surface Mount	B	20 %	2000 Hrs	Molded	0.079 in			2 mm	3528 Metric
KEMET T520T227M2R5ATE030	30 mOhm	2.5 V			-55 C	105 ░C	2.8 mm	0.11 "	0.138 in	3.5 mm	General Purpose	220 µF	1411	Surface Mount	T	20 %	1000 Hrs	Molded		0.047 "	1.2 mm		3528 Metric

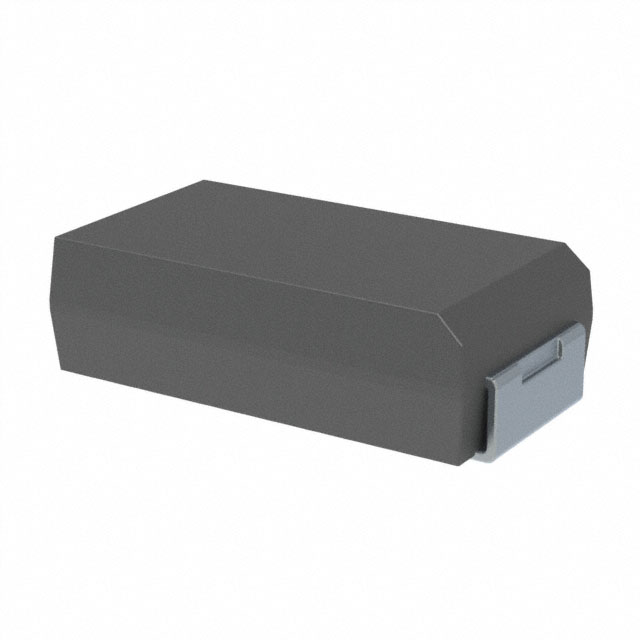

KEMET T520L157M006ATE025	25 mOhm	6.3 VDC	0.075 "		-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	150 µF	2312 (6032 Metric)	Surface Mount	L	20 %	2000 Hrs	Molded	1.9 mm
KEMET T520V157M004ATE009	9 mOhm	4 V	0.075 "		-55 C	105 ░C	4.3 mm	0.169 "	0.287 "	7.3 mm	General Purpose	150 µF	2917 (7343 Metric)	Surface Mount	V	20 %	2000 Hrs	Molded	1.9 mm
KEMET T520D227M010ATE0257280	25 mOhm	10 V			-55 C	105 ░C	4.3 mm	0.169 "	0.287 "	7.3 mm	General Purpose	220 µF	2917 (7343 Metric)	Surface Mount	D	20 %	2000 Hrs	Molded		0.122 in	3.1 mm
KEMET T520U227M2R5ATE055	55 mOhm	2.5 V	0.059 "	1.5 mm	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	General Purpose	220 µF	2312 (6032 Metric)	Surface Mount	U	20 %	2000 Hrs	Molded
