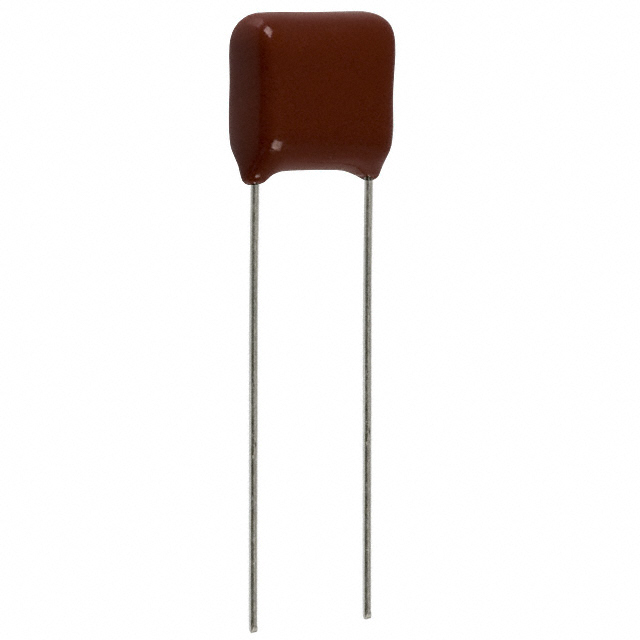

ECQ-E4104 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 0.1UF 10% 400VDC RADIAL

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Dielectric Material	Termination	Applications	Capacitance	Package / Case	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ECQ-E4104KZ	16.5 mm	0.276 in	7 mm	0.65 in	Polyester Metallized	PC Pins	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	100000 pF	Radial	13.5 mm	0.531 in	Through Hole	15.5 mm	0.61 "	85 °C	-40 °C	400 V	10 %
Panasonic Industrial Automation Sales ECQ-E4104JFB	0.472 in 12 mm		0.248 in 6.3 mm		Polyester Metallized	PC Pins	General Purpose	100000 pF	Radial	10 mm	0.394 in	Through Hole			105 ░C	-40 °C	400 V	5 %	17 mm	0.669 in

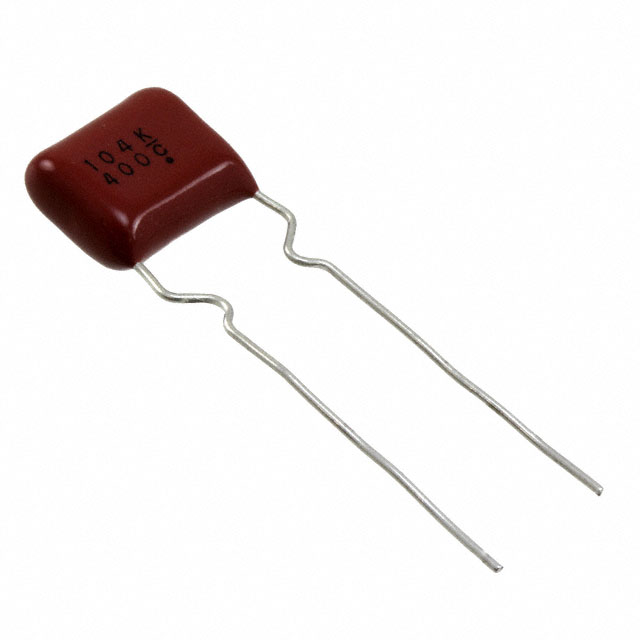

Panasonic Industrial Automation Sales ECQ-E4104KF3	0.472 in 12 mm		0.248 in 6.3 mm		Polyester Metallized	PC Pins	General Purpose	100000 pF	Radial	5 mm	0.197 in	Through Hole			105 ░C	-40 °C	400 V	10 %	17 mm	0.669 in
Panasonic Industrial Automation Sales ECQ-E4104JFW	0.472 in 12 mm		0.248 in 6.3 mm		Polyester Metallized	PC Pins	General Purpose	100000 pF	Radial	10 mm	0.394 in	Through Hole			105 ░C	-40 °C	400 V	5 %	17 mm	0.669 in
Panasonic Industrial Automation Sales ECQ-E4104KF9	0.472 in 12 mm		0.248 in 6.3 mm		Polyester Metallized	PC Pins	General Purpose	100000 pF	Radial	5 mm	0.197 in	Through Hole			105 ░C	-40 °C	400 V	10 %	17 mm	0.669 in
Panasonic Industrial Automation Sales ECQ-E4104JF3	0.472 in 12 mm		0.248 in 6.3 mm		Polyester Metallized	PC Pins	General Purpose	100000 pF	Radial	5 mm	0.197 in	Through Hole			105 ░C	-40 °C	400 V	5 %	17 mm	0.669 in
Panasonic Industrial Automation Sales ECQ-E4104RJF	0.472 in 12 mm		0.248 in 6.3 mm		Polyester Metallized	PC Pins	General Purpose	100000 pF	Radial	10 mm	0.394 in	Through Hole			105 ░C	-40 °C	400 V	5 %	17 mm	0.669 in
Panasonic Industrial Automation Sales ECQ-E4104KF	0.472 in 12 mm		0.248 in 6.3 mm		Polyester Metallized	PC Pins	General Purpose	100000 pF	Radial	10 mm	0.394 in	Through Hole			105 ░C	-40 °C	400 V	10 %	13 mm	0.512 "
Panasonic Industrial Automation Sales ECQ-E4104KFA					Polyester Metallized	PC Pins	General Purpose	100000 pF	Radial			Through Hole			105 ░C	-40 °C	400 V	10 %

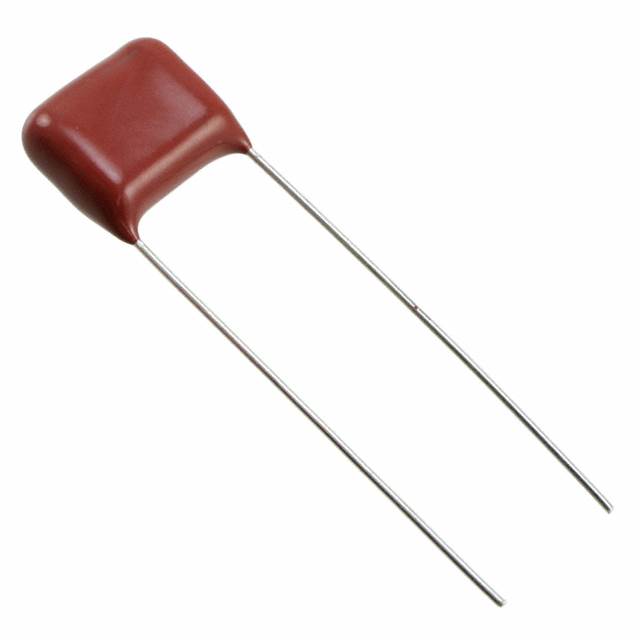

Panasonic Industrial Automation Sales ECQ-E4104JF	0.472 in 12 mm		0.248 in 6.3 mm		Polyester Metallized	PC Pins	General Purpose	100000 pF	Radial	10 mm	0.394 in	Through Hole			105 ░C	-40 °C	400 V	5 %	13 mm	0.512 "
