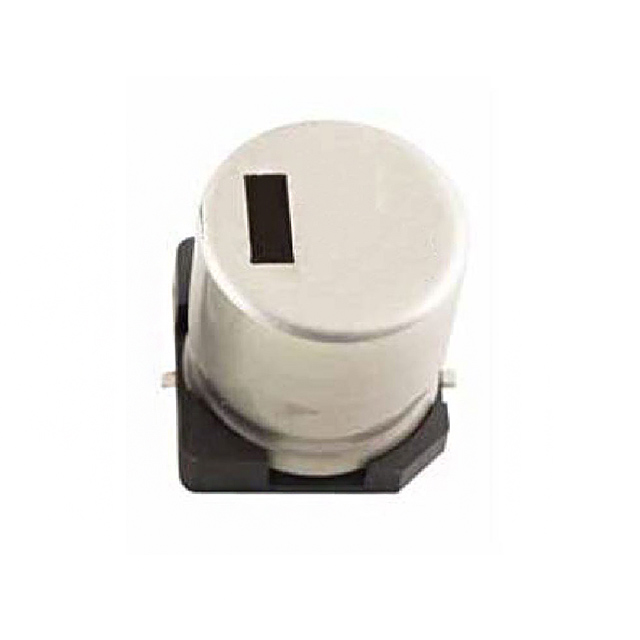

TRV Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD LONG LIFE ELECTROLYTIC CAPACITORS

Part	Mounting Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Polarization	Impedance	Capacitance	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Tolerance	Ripple Current @ High Frequency	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Rubycon 10TRV680M10X10.5	Surface Mount	0.406 "	0.406 in	10.3 mm	10.3 mm	Polar	120 mOhms	680 µF	8000 Hrs	-40 C	105 ░C	0.413 "	10.5 mm	510 mA	General Purpose	0.394 in	10 mm	10 V	20 %	850 mA	Radial Can - SMD
Rubycon 35TRV10M6.3X6.1	Surface Mount	0.26 in	0.26 in	6.6 mm	6.6 mm	Polar	1 Ohms	10 µF	5000 Hrs	-40 C	105 ░C			63 mA	General Purpose	0.248 "	6.3 mm	35 V	20 %	140 mA	Radial Can - SMD	6.1 mm	0.24 "
Rubycon 35TRV680M12.5X16	Surface Mount					Polar	74 mOhms	680 µF	10000 Hrs	-40 C	105 ░C			720 mA	General Purpose	0.492 in	12.5 mm	35 V	20 %	1.2 A	Radial Can - SMD	16.5 mm	0.65 in
Rubycon 25TRV3300M18X21.5	Surface Mount	0.748 in	0.748 in	19 mm	19 mm	Polar	39 mOhms	3.3 mF	10000 Hrs	-40 C	105 ░C			1.29 A	General Purpose	0.709 in	18 mm	25 VDC	20 %	2.15 A	Radial Can - SMD			0.866 in	22 mm
