1415898 Series

Catalog

RELAY GEN PURP

Part	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Coil Current	Contact Rating (Current)	Must Release Voltage	Coil Insulation	Operate Time	Termination Style	Contact Material	Relay Type	Switching Voltage [Max]	Release Time	Coil Type	Must Operate Voltage	Contact Form	Approval Agency	Seal Rating	Load - Max Switching	Mounting Type

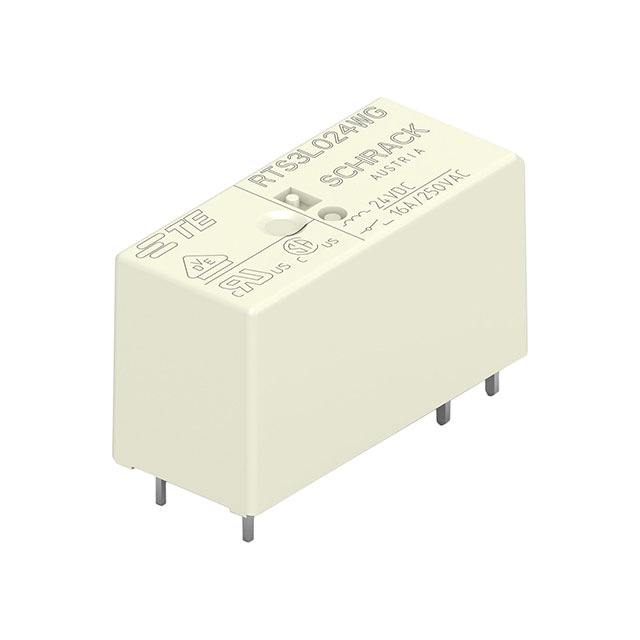

TE Connectivity AMP Connectors 5-1415898-1	1440 Ohms	85 °C	-40 C	24 VDC	16.7 mA	16 A	2.4 VDC	Class F	10 ms	PC Pin	Silver Tin Oxide (AgSnO)	General Purpose	400 VAC	5 ms	Non Latching	16.8 VDC	SPST-NO (1 Form A)	CQC CSA cURus VDE	Sealed - Flux Protection	6400 VA	Through Hole

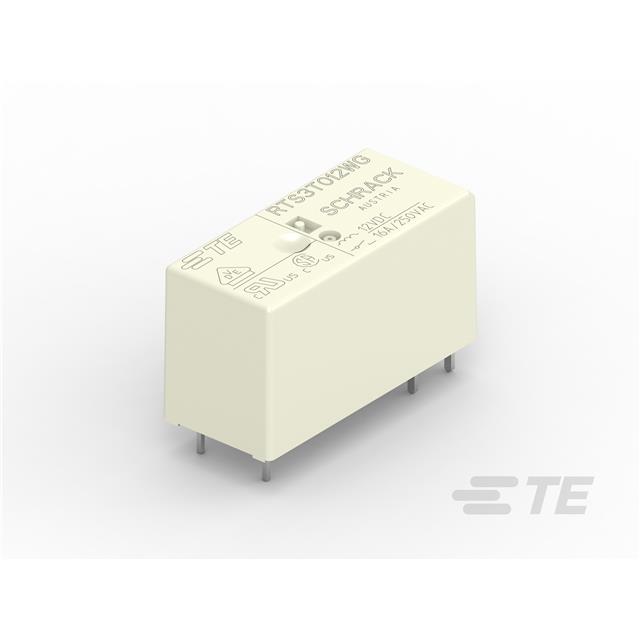

TE Connectivity AMP Connectors 5-1415898-6
TE Connectivity AMP Connectors 5-1415898-6
TE Connectivity AMP Connectors 1415898-9	240 Ohms	105 ░C	-40 C	12 VDC	50 mA	16 A		Class F	10 ms	PC Pin	Silver Tin Oxide Tungsten	General Purpose	480 VAC	10 ms	Dual Coil Latching	8.4 VDC	SPST-NO (1 Form A)	CQC CSA cURus VDE	Sealed - Flux Protection	6400 VA	Through Hole

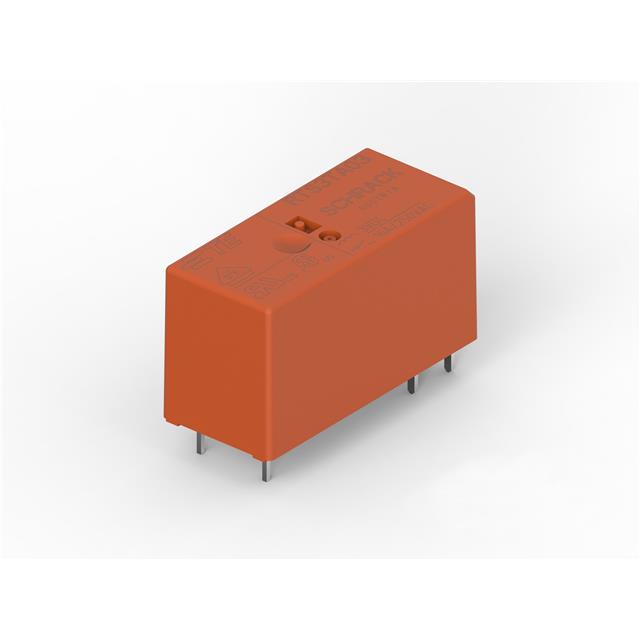

TE Connectivity AMP Connectors 4-1415898-5	21 Ohms	85 °C	-10 °C		142.9 mA	16 A	1.7 VDC	Class F	10 ms	PC Pin	Silver Tin Oxide Tungsten	General Purpose	400 VAC	5 ms	Latching Single Coil	2.1 VDC	SPST-NO (1 Form A)	CQC CSA cURus VDE	Sealed - Flux Protection	6400 VA	Through Hole
