53K501 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN N TYPE JACK ST 50OHM SOLDER
| Part | Body Material | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Finish | Center Contact Plating | Includes | Frequency - Max [Max] | Connector Style | Number of Ports | Housing Color | Mounting Feature | Ingress Protection | Connector Type | Mounting Type | Impedance | Fastening Type | Center Contact Material | Contact Termination | Shield Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

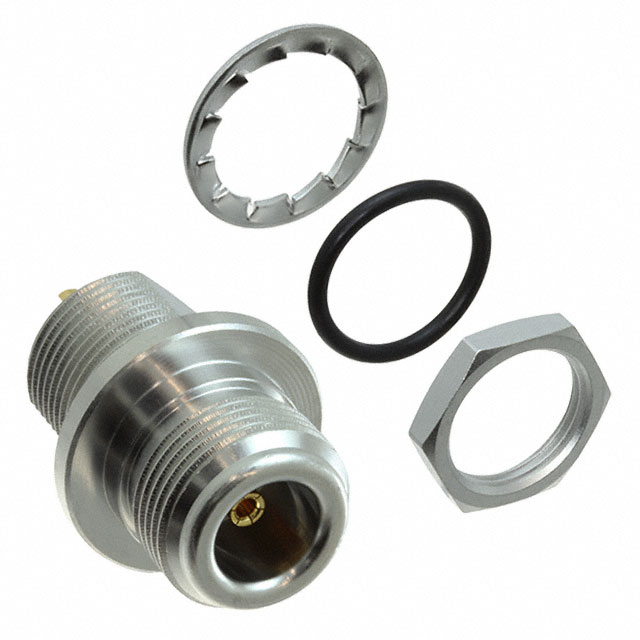

 Rosenberger | Brass | Polytetrafluoroethylene (PTFE) | 500 | -25 °C | 110 °C | 500 V | White Bronze | Gold | 1 Connector 1 Lockwasher 1 Nut | 11 GHz | N Type | 1 | Silver | Bulkhead - Rear Side Nut | IP67 - Dust Tight Waterproof | Female Socket Jack | Panel Mount | 50 Ohms | Threaded | Beryllium Copper | Solder Cup | Solder | |

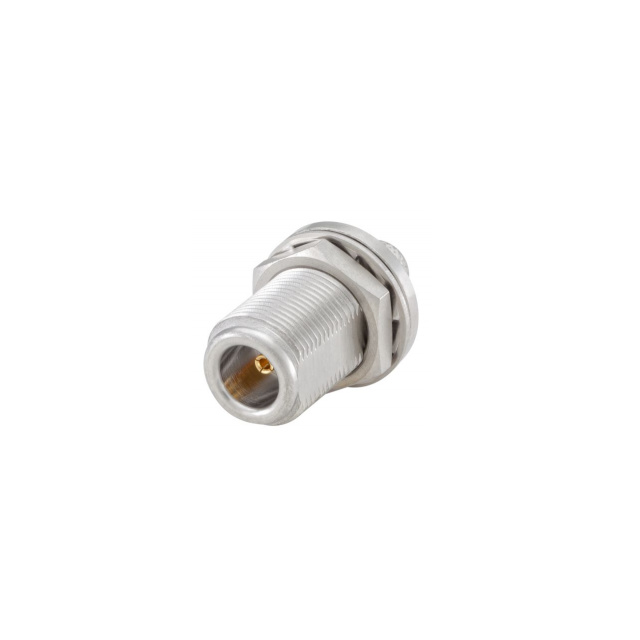

 Rosenberger | Brass | Polytetrafluoroethylene (PTFE) | 500 | -25 °C | 110 °C | 500 V | White Bronze | Gold | 11 GHz | N Type | 1 | Silver | Bulkhead - Front Side Nut | Female Socket Jack | Panel Mount | 50 Ohms | Threaded | Beryllium Copper | Crimp | Crimp | RG-213 |
