T41414 Series
Manufacturer: TE Connectivity AMP Connectors

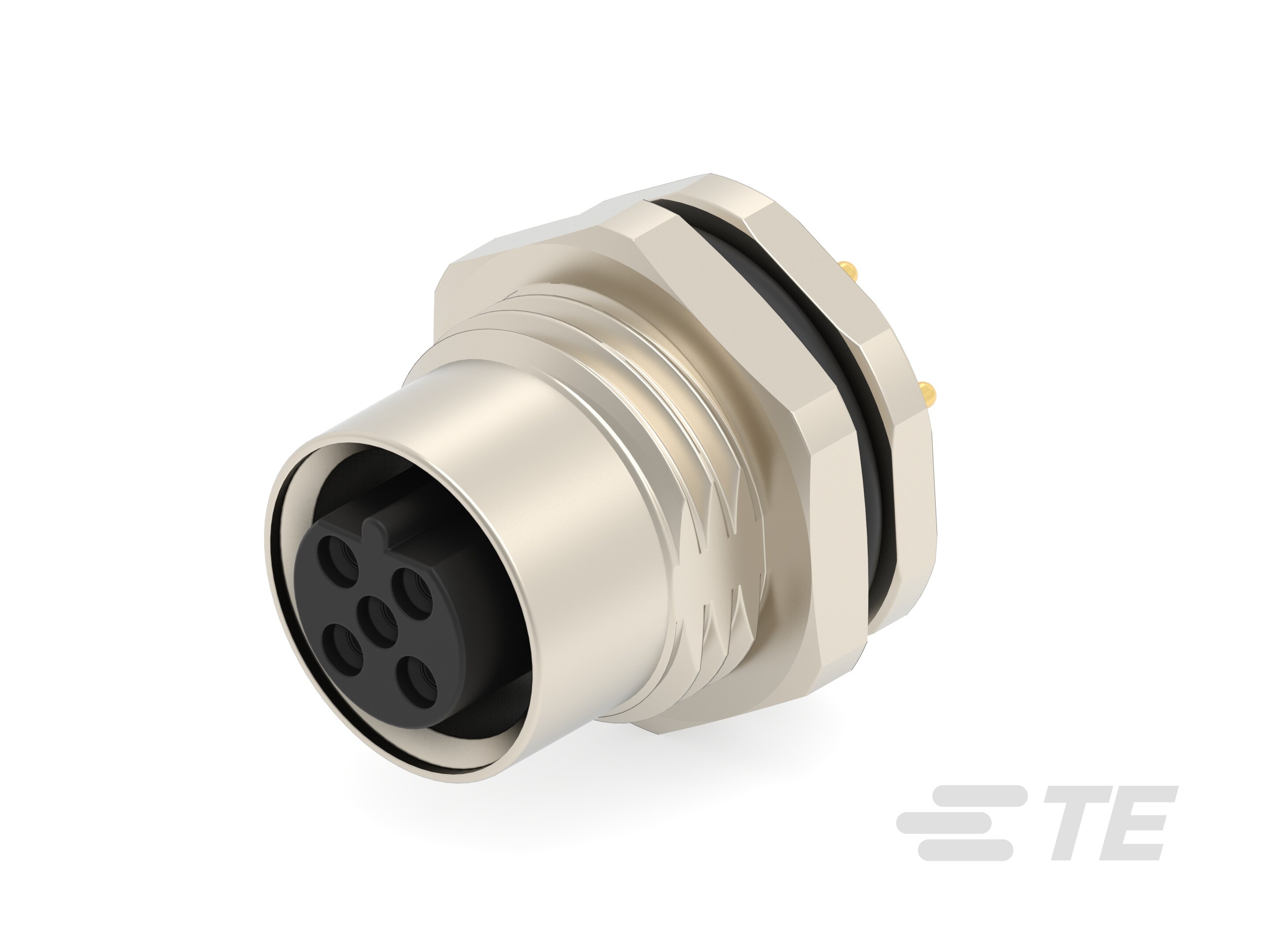

M12,REAR MOUNTING,FEMALE,B CODE,2P
| Part | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insert Material | Shielding | Termination | Mounting Type | Shell Size - Insert | Connector Type | Fastening Type | Shell Material | Color | Mounting Feature | Material Flammability Rating | Contact Finish - Mating | Primary Material | Voltage Rating | Shell Finish | Current Rating (Amps) | Ingress Protection | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | Industrial | 0.076 µm | 3 µin | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Unshielded | Solder | Panel Mount Through Hole | M12-2 | Plug Female Sockets | Threaded | Copper Alloy | Silver | Bulkhead - Front Side Nut | UL94 V-0 | Gold | Metal | 250 V | Nickel | 4 A | IP67 - Dust Tight Waterproof | B | 85 °C | -40 C | 2 |

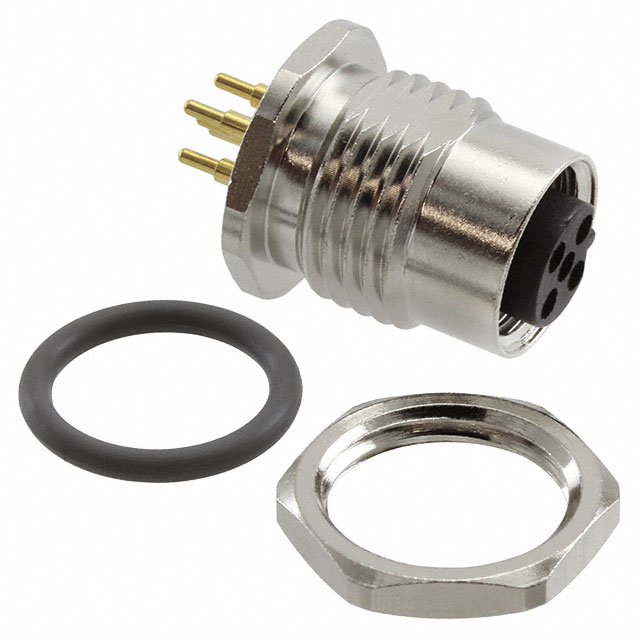

TE Connectivity AMP Connectors | Industrial | 0.076 µm | 3 µin | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Unshielded | Solder | Panel Mount Through Hole | M12-5 | Plug Female Sockets | Threaded | Copper Alloy | Silver | Bulkhead - Front Side Nut | UL94 V-0 | Gold | Metal | 60 VDC | Nickel | 4 A | IP67 - Dust Tight Waterproof | B | 85 °C | -40 C | 5 |
TE Connectivity AMP Connectors | Industrial | 0.076 µm | 3 µin | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Unshielded | Solder | Panel Mount Through Hole | M12-3 | Plug Female Sockets | Threaded | Copper Alloy | Silver | Bulkhead - Front Side Nut | UL94 V-0 | Gold | Metal | 250 V | Nickel | 4 A | IP67 - Dust Tight Waterproof | B | 85 °C | -40 C |
