155240 Series

Catalog

CONN HEADER R/A 40POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Shrouding	Mounting Type	Contact Shape	Current Rating (Amps)	Connector Type	Number of Positions Loaded	Number of Rows [custom]	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Style	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Insulation Color	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]

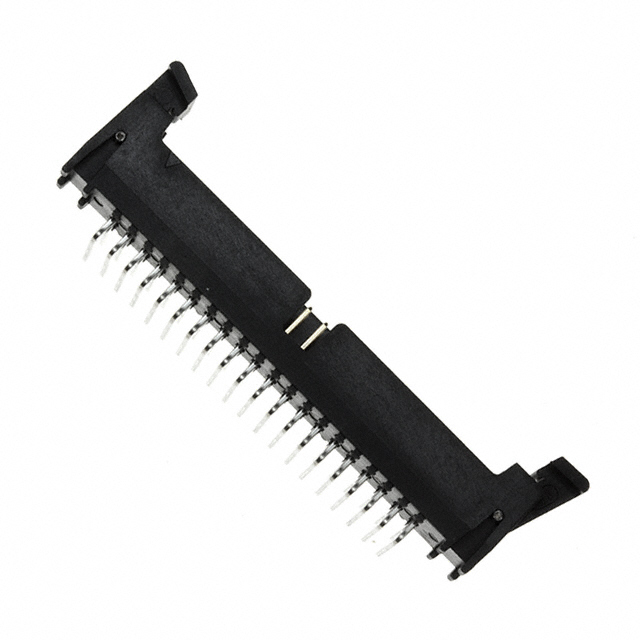

3M Electronic Specialty 155240-5303-RB	200 µin	5.08 µm	Tin	Shrouded - 4 Wall	Right Angle Through Hole	Square	1.25 A	Header	All	2	40	3.94 mm	0.155 "	6.28 mm	0.247 "	0.079 "	2 mm	Keying Slot	-55 C	105 ░C	Copper Alloy	3.81 mm	0.15 in	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	Male Pin	Black	Latch Lock/Eject Hooks	0.76 Ám	30 Áin	Solder	Gold
3M Electronic Specialty 155240-2300-RB	200 µin	5.08 µm	Tin	Shrouded - 4 Wall	Surface Mount	Square	1.25 A	Header	All	2	40					0.079 "	2 mm	Keying Slot	-55 C	105 ░C	Copper Alloy	3.81 mm	0.15 in	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	Male Pin	Black	Latch Lock/Eject Hooks	0.76 Ám	30 Áin	Solder	Gold	10.8 mm	0.425 in
3M Electronic Specialty 155240-6303-RB	200 µin	5.08 µm	Tin	Shrouded - 4 Wall	Through Hole	Square	1.25 A	Header	All	2	40	3.94 mm	0.155 "			0.079 "	2 mm	Keying Slot	-55 C	105 ░C	Copper Alloy	3.81 mm	0.15 in	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	Male Pin	Black	Latch Lock/Eject Hooks	0.76 Ám	30 Áin	Solder	Gold	10.8 mm	0.425 in
3M Electronic Specialty 155240-6302-RB	200 µin	5.08 µm	Tin	Shrouded - 4 Wall	Through Hole	Square	1.25 A	Header	All	2	40					0.079 "	2 mm	Keying Slot	-55 C	105 ░C	Copper Alloy	3.81 mm	0.15 in	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	Male Pin	Black	Latch Lock/Eject Hooks	0.76 Ám	30 Áin	Solder	Gold	10.8 mm	0.425 in	0.112 in	2.84 mm
3M Electronic Specialty 155240-5302-RB	200 µin	5.08 µm	Tin	Shrouded - 4 Wall	Right Angle Through Hole	Square	1.25 A	Header	All	2	40			6.28 mm	0.247 "	0.079 "	2 mm	Keying Slot	-55 C	105 ░C	Copper Alloy	3.81 mm	0.15 in	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	Male Pin	Black	Latch Lock/Eject Hooks	0.76 Ám	30 Áin	Solder	Gold			0.112 in	2.84 mm
