3282-5P Series

Catalog

CONN PLUG MALE 5P GOLD SLDR CUP

Part	Primary Material	Current Rating (Amps)	Color	Voltage Rating	Backshell Material, Plating	Contact Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Mounting Type	Ingress Protection	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Number of Positions	Connector Type	Features	Fastening Type	Contact Finish - Mating
SWITCHCRAFT/CONXALL 3282-5PG-530	Plastic	5.6 A	Black	600 V	Nylon Polyamide (PA)	Brass	0.32 in	0.3 in	7.62 mm	8.13 mm	Free Hanging (In-Line)	Weathertight	Keyed	115 °C	-40 C	Unshielded	5	Plug Male Pins	Backshell Cable Clamp	Bayonet Lock	Gold
SWITCHCRAFT/CONXALL 3282-5PG-315	Plastic	5.6 A	Black	600 V	Nylon Polyamide (PA)	Brass	0.17 in	0.15 "	3.81 mm	4.32 mm	Free Hanging (In-Line)	Weathertight	Keyed	115 °C	-40 C	Unshielded	5	Plug Male Pins	Backshell	Bayonet Lock	Gold

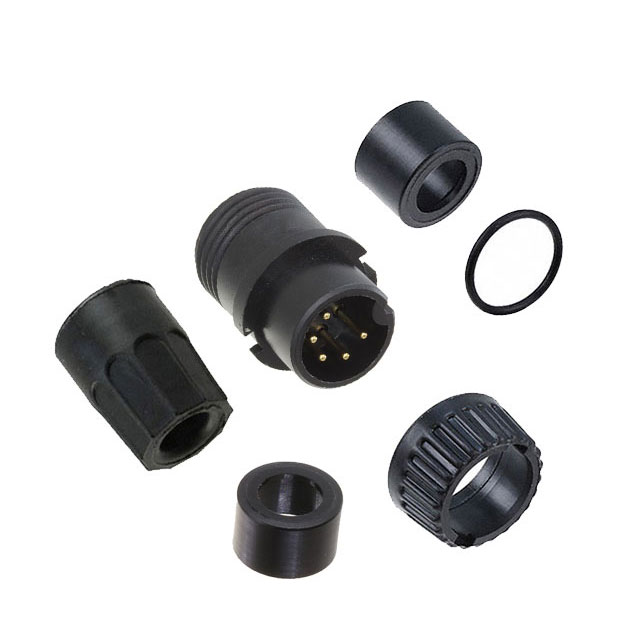

SWITCHCRAFT/CONXALL 3282-5PG-328	Plastic	5.6 A	Black	600 V	Nylon Polyamide (PA)	Brass	0.29 in	0.28 in	7.11 mm	7.37 mm	Free Hanging (In-Line)	Weathertight	Keyed	115 °C	-40 C	Unshielded	5	Plug Male Pins	Backshell	Bayonet Lock	Gold
