BA Series
Manufacturer: Ohmite
Beta
⌘K
PLANAR RESISTORS - CHASSIS MOUNT 500W 25 OHM 10%
| Part | Mounting Feature | Composition | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Lead Style | Coating, Housing Type | Power (Watts) | Resistance | Tolerance | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | Flanges | Wirewound | 30 mm | 1.181 " | Wire Leads | Aluminum | 500 W | 25 Ohms | 10 % | Radial Rectangular Case | 95 mm | 6.299 " | 160 mm | 3.74 " |

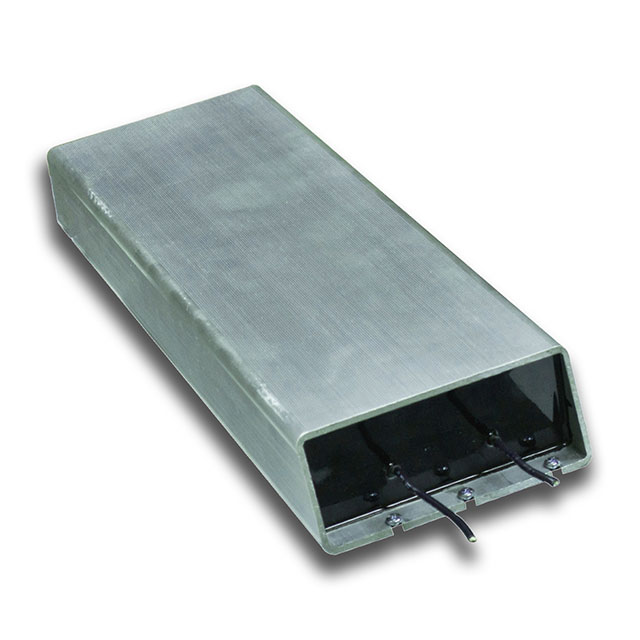

 Ohmite | Flanges | Wirewound | 30 mm | 1.181 " | Wire Leads | Aluminum | 700 W | 10 Ohms | 10 % | Radial Rectangular Case | 100 mm | 12.598 in | 320 mm | 3.937 " |
