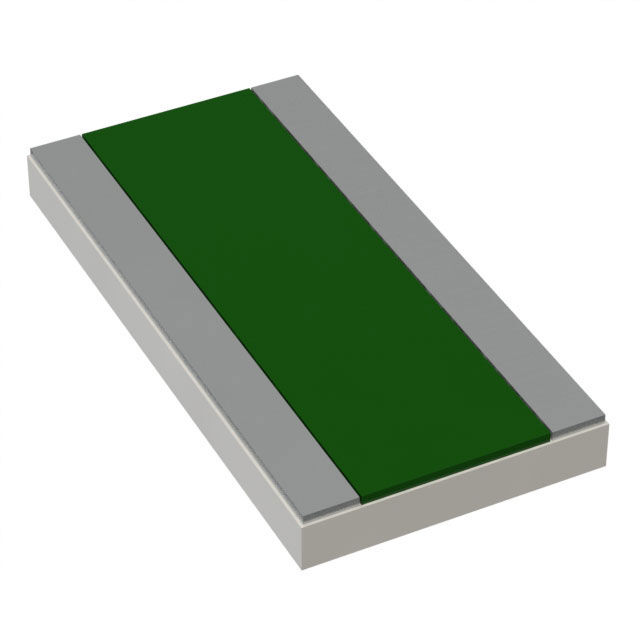

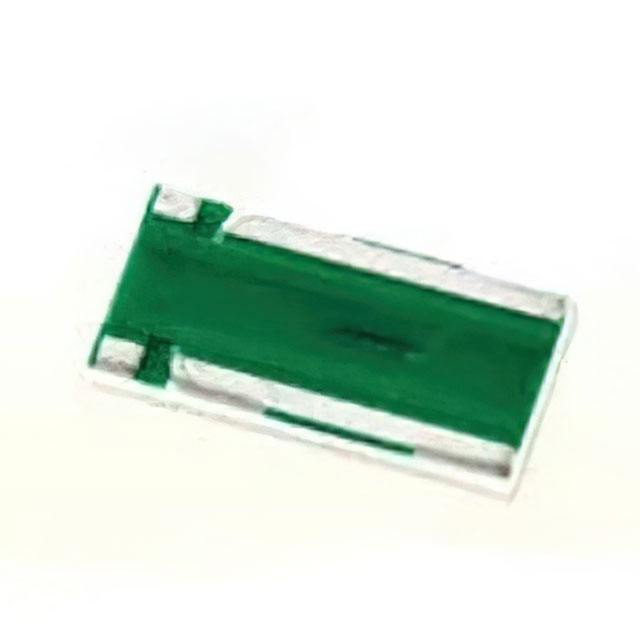

KRL-T4 Series
Manufacturer: Susumu
Beta
⌘K
CURRENT SENSE RESISTORS - SMD 1W 0.009OHM 1% 50PPM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Terminations | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Features | Power (Watts) | Package / Case | Resistance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Susumu | 155 C | -55 C | 4 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 1 % | Current Sense | 1 W | 0612 Wide 1206 (3216 Metric) | 9 mOhms | 0.7 mm | 0.028 " | 50 ppm/░C | ||
 Susumu | 155 C | -55 C | 4 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 1 % | Current Sense | 1 W | 0612 Wide 1206 (3216 Metric) | 6 mOhms | 0.7 mm | 0.028 " | 35 ppm/°C | ||
Susumu | 155 C | -55 C | 4 | 0.252 in | 0.126 in | 1 % | Current Sense | 2 W | 1225 Wide 2512 (6432 Metric) | 7 mOhms | 0.7 mm | 0.028 " | 50 ppm/░C | 6.4 mm | 3.2 mm | ||
Susumu | 155 C | -55 C | 4 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 1 % | Current Sense | 1 W | 0612 Wide 1206 (3216 Metric) | 0.1 Ohms | 0.7 mm | 0.028 " | 35 ppm/°C | ||
Susumu | 155 C | -55 C | 4 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 1 % | Current Sense | 1 W | 0612 Wide 1206 (3216 Metric) | 22 mOhms | 0.7 mm | 0.028 " | 35 ppm/°C | ||
 Susumu | 155 C | -55 C | 4 | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 1 % | Current Sense | 1 W | 0612 Wide 1206 (3216 Metric) | 4 mOhms | 0.7 mm | 0.028 " | 35 ppm/°C |
