CII LS Relay Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

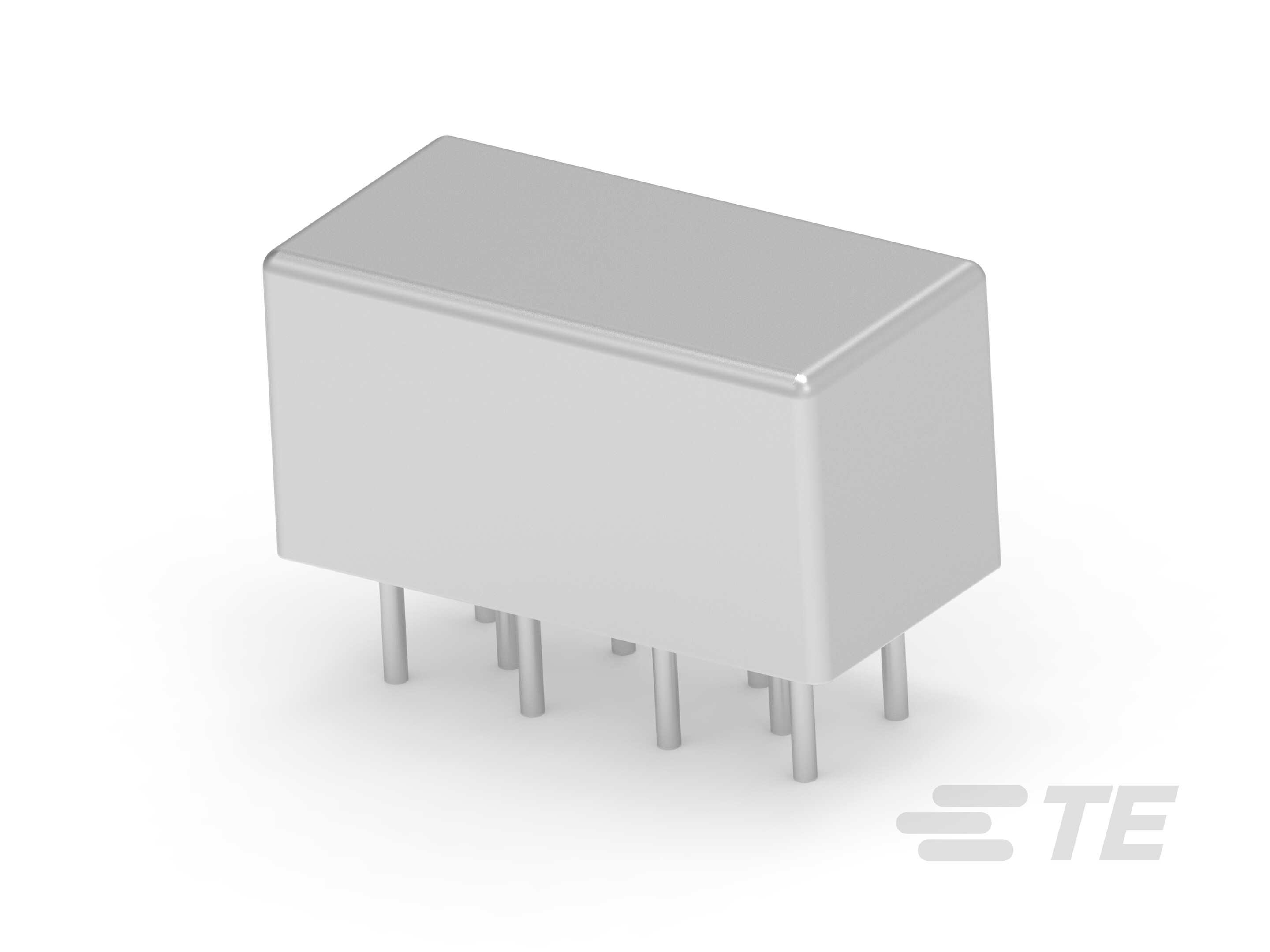

LSAW-2C-12B = 1/2 LATCH 2 POLE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Seal Rating	Termination Style	Coil Type	Contact Rating (Current)	Coil Current	Coil Voltage	Release Time	Contact Form	Must Operate Voltage	Contact Material	Relay Type	Mounting Type	Switching Voltage	Switching Voltage [Max]	Must Release Voltage	Load - Max Switching	Coil Resistance
TE Connectivity AMP Connectors LSAW-2C-12B	-65 ░C	125 °C	5 ms	Sealed - Hermetically	PC Pin	Dual Coil Latching	2 A	47.2 mA	12 VDC	5 ms	DPDT (2 Form C)	6.5 VDC	Gold (Au) Silver (Ag)	General Purpose	Through Hole	28 VDC
TE Connectivity AMP Connectors LS-9523M	-65 ░C	125 °C	5 ms	Sealed - Hermetically	Solder Hook	Dual Coil Latching	2 A	26.5 mA	26.5 VDC	5 ms	DPDT (2 Form C)	13 VDC	Gold (Au) Silver (Ag)	General Purpose	Chassis Mount	28 VDC
TE Connectivity AMP Connectors LSBW-2C-24A	-65 ░C	125 °C	5 ms	Sealed - Hermetically	Solder Hook	Dual Coil Latching	2 A	26.5 mA	26.5 VDC	5 ms	DPDT (2 Form C)	13 VDC	Gold (Au) Silver (Ag)	General Purpose	Chassis Mount		28 VDC	8 VDC	56 W
TE Connectivity AMP Connectors LS-9505M	-65 ░C	125 °C	5 ms	Sealed - Hermetically	Solder Hook	Dual Coil Latching	2 A	111.1 mA	5 VDC	5 ms	DPDT (2 Form C)	2.7 VDC	Gold (Au) Silver (Ag)	General Purpose	Chassis Mount	28 VDC				45 Ohms
TE Connectivity AMP Connectors LS-9521M	-65 ░C	125 °C	5 ms	Sealed - Hermetically	Solder Hook	Dual Coil Latching	2 A	26.5 mA	26.5 VDC	5 ms	DPDT (2 Form C)	13 VDC	Gold (Au) Silver (Ag)	General Purpose	Chassis Mount	28 VDC				1 kOhms
TE Connectivity AMP Connectors LS-9521L	-65 ░C	125 °C	5 ms	Sealed - Hermetically	Solder Hook	Dual Coil Latching	2 A	26.5 mA	26.5 VDC	5 ms	DPDT (2 Form C)	13 VDC	Gold (Au) Silver (Ag)	General Purpose	Chassis Mount	28 VDC				1 kOhms
