24-9574 Series

Catalog

SOLDER 66 .025 22AWG 1LB

Part	Melting Point	Melting Point	Composition	Type	Wire Gauge	Flux Type	Form	Form	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Diameter [diameter]	Diameter [diameter]	Wire Gauge
Kester Solder 24-9574-7619	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	22 AWG 23 SWG	No-Clean	1 lb 454 g	Spool	40 °C 104 F	10 C 50 F
Kester Solder 24-9574-6422	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	27 AWG 28 SWG	Water Soluble	1 lb 454 g	Spool	40 °C 104 F	10 C 50 F	0.38 mm	0.015 in
Kester Solder 24-9574-6401	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	24 AWG 25 mmý	Water Soluble	1 lb 454 g	Spool	40 °C 104 F	10 C 50 F	0.51 mm	0.02 in
Kester Solder 24-9574-1411	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	11 AWG 13 SWG	Rosin Activated (RA)	1 lb 454 g	Spool	40 °C 104 F	10 C 50 F	2.36 mm	0.093 in
Kester Solder 24-9574-8213	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	20 AWG 22 SWG	Rosin Activated (RA)	1 lb 454 g	Spool	40 °C 104 F	10 C 50 F
Kester Solder 24-9574-6417	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	22 AWG 23 SWG	Water Soluble	1 lb 454 g	Spool	40 °C 104 F	10 C 50 F
Kester Solder 24-9574-1401	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	24 AWG 25 mmý	Rosin Activated (RA)	1 lb 454 g	Spool	40 °C 104 F	10 C 50 F	0.51 mm	0.02 in

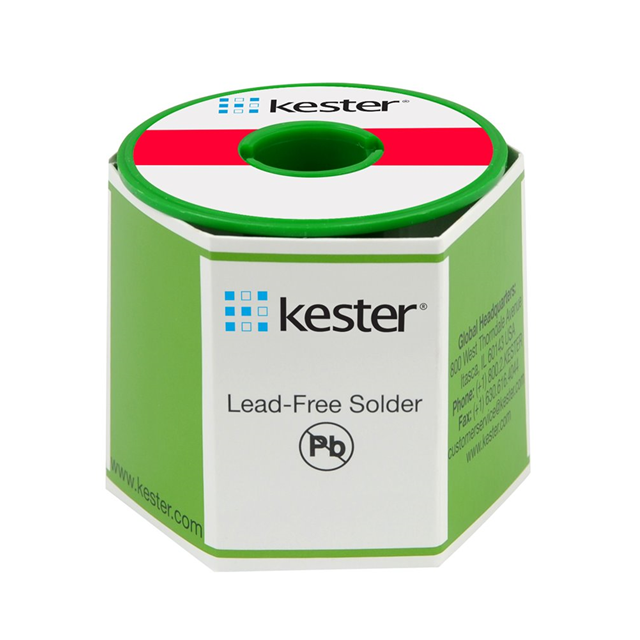

Kester Solder 24-9574-6403	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	20 AWG 22 SWG	Water Soluble	1 lb 454 g	Spool	40 °C 104 F	10 C 50 F
Kester Solder 24-9574-1402	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	20 AWG 22 SWG	Rosin Activated (RA)	1 lb 454 g	Spool	40 °C 104 F	10 C 50 F
Kester Solder 24-9574-7631	441 °F	227 °C	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder		No-Clean	1 lb 454 g	Spool	40 °C 104 F	10 C 50 F	0.25 mm	0.01 in	30 AWG 33 SWG
