ND3FC16 Series

Catalog

SW ROTARY DIP HEX COMP 0.1A 5V

Part	Body Material	Mechanical Life	Electrical Life	Length [x]	Length [x]	Circuit	Height Above Board	Height Above Board	Pitch	Pitch	Pitch	Actuator Type	Contact Material	Current Rating (Amps)	Voltage Rating	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Features	Washable	Number of Positions	Termination Style	Contact Finish	Mounting Type	Height Above Board [z]	Height Above Board [z]	Pitch

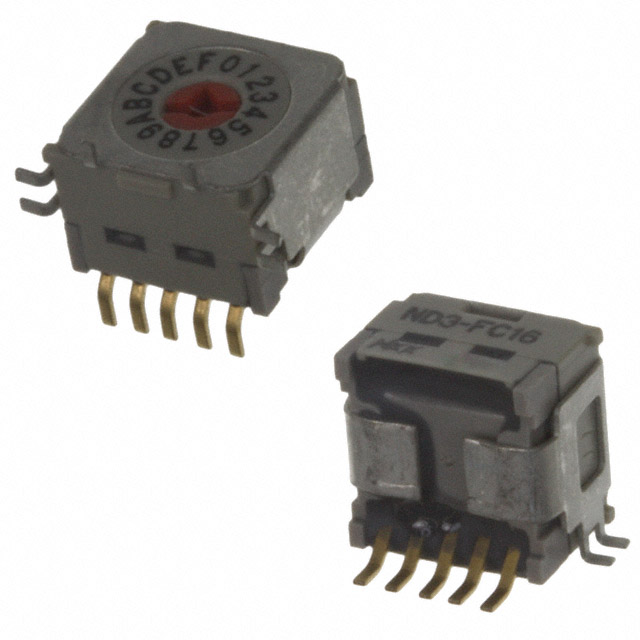

NKK Switches ND3FC16H	Polyamide (PA) Nylon Glass Filled	20000 Cycles	20000 Steps	0.32 in	8.13 mm	Hexadecimal Complement	8.03 mm	0.316 in	0.05 "	1.27 mm	Half	Rotary for Tool	Beryllium Copper	100 mA	5 V	Flush Recessed	85 °C	-25 °C	Epoxy Sealed Terminals		16	Gull Wing	Gold	Right Angle Surface Mount
NKK Switches ND3FC16B	Polyamide (PA) Nylon Glass Filled	20000 Cycles	20000 Steps	0.32 in	8.13 mm	Hexadecimal Complement				2.54 mm		Rotary for Tool	Beryllium Copper	100 mA	5 V	Flush Recessed	85 °C	-25 °C	Epoxy Sealed Terminals		16	Gull Wing	Gold	Surface Mount	0.22 in	5.59 mm	0.1 "
