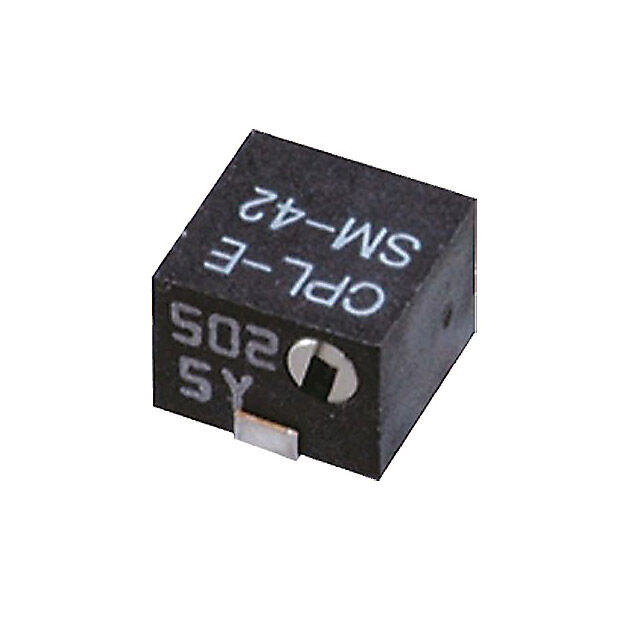

SM-42 Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER RESISTORS - SMD 5 KW 5MM SMD 11 TURN, GULL-WING, SIDE-ADJUSTMENT

Part	Number of Turns	Termination Style	Adjustment Type	Mounting Type	Resistive Material	Power (Watts)	Power (Watts)	Temperature Coefficient	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistance
Nidec Components Corporation SM-42B502	11	Gull Wing	Side Adjustment	Surface Mount	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	0.189 "	4.6 mm	4.8 mm	0.181 "	5 kOhms
Nidec Components Corporation SM-42TB500	11	Gull Wing	Side Adjustment	Surface Mount	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	0.189 "	4.6 mm	4.8 mm	0.181 "	50 Ohms
Nidec Components Corporation SM-42A200	11	J Lead	Side Adjustment	Surface Mount	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	0.189 "	4.6 mm	4.8 mm	0.181 "	20 Ohms

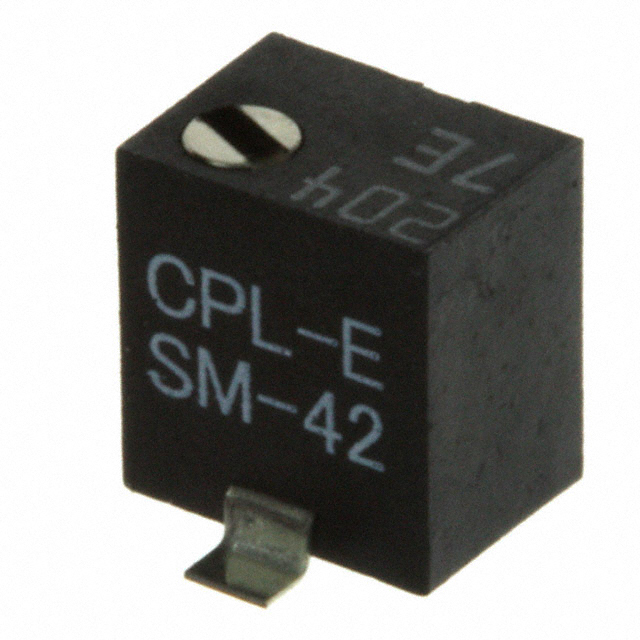

Nidec Components Corporation SM-42TX204	11	Gull Wing	Top Adjustment	Surface Mount	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	0.189 "	3.5 mm	4.8 mm	0.138 in	200000 Ohms
Nidec Components Corporation SM-42A104	11	J Lead	Side Adjustment	Surface Mount	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	0.189 "	4.6 mm	4.8 mm	0.181 "	100 kOhms
Nidec Components Corporation SM-42W205	11	J Lead	Top Adjustment	Surface Mount	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	0.189 "	3.5 mm	4.8 mm	0.138 in	2 MOhms
Nidec Components Corporation SM-42W503	11	J Lead	Top Adjustment	Surface Mount	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	0.189 "	3.5 mm	4.8 mm	0.138 in	50000 Ohms

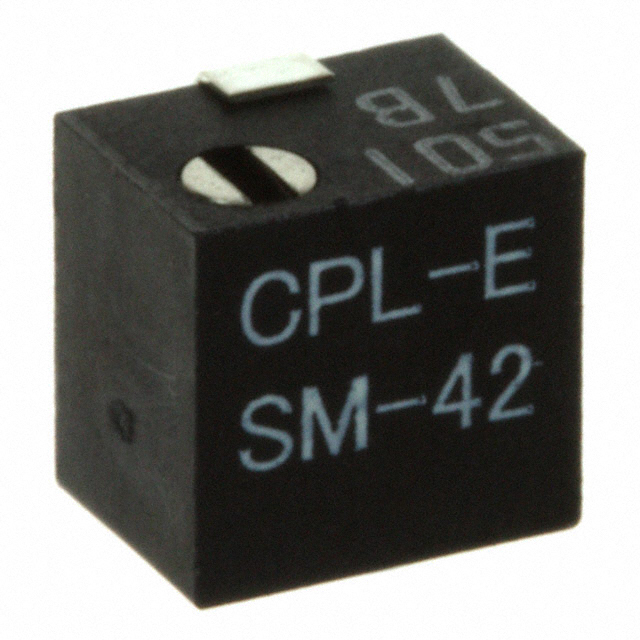

Nidec Components Corporation SM-42TA501	11	J Lead	Side Adjustment	Surface Mount	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	0.189 "	4.6 mm	4.8 mm	0.181 "	0.5 kOhms

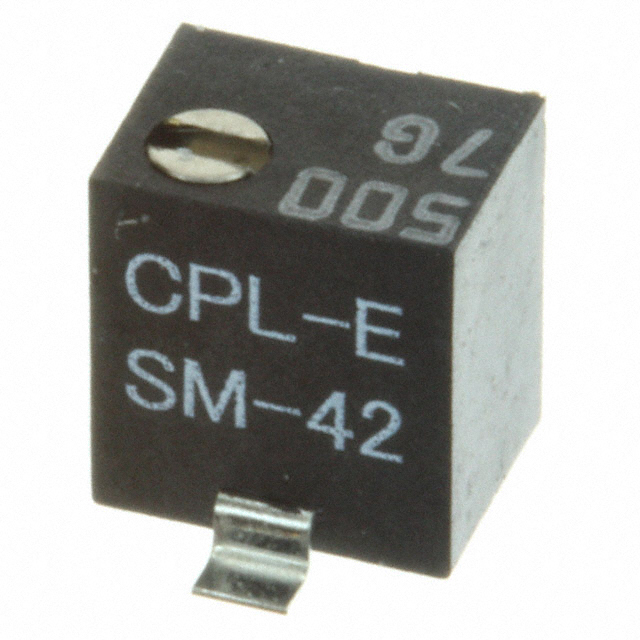

Nidec Components Corporation SM-42TX500	11	Gull Wing	Top Adjustment	Surface Mount	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	0.189 "	3.5 mm	4.8 mm	0.138 in	50 Ohms
Nidec Components Corporation SM-42TB101	11	Gull Wing	Side Adjustment	Surface Mount	Cermet	0.25 W	0.25 W	100 ppm/°C	10 %	0.189 "	4.6 mm	4.8 mm	0.181 "	100 Ohms
