CIRCULAR CONNECTOR, MINI-CON-X INSTA-CLICK SERIES, CABLE MOUNT PLUG, 3 CONTACTS, SOLDER PIN

...

Part	Connector Type	Ingress Protection	Color	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Orientation	Insert Material	Contact Finish - Mating	Voltage Rating	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Material	Mounting Type	Current Rating (Amps)	Shielding	Applications	Backshell Material, Plating	Features	Mounting Feature	Number of Positions	Termination	Cable Opening [Max]
SWITCHCRAFT/CONXALL W6382-3PG-P-519	Plug Male Pins	IP66 IP67 IP68	Black	5.33 mm	0.21 in	0.19 in	4.83 mm	Keyed	Thermoplastic	Gold	300 VAC	Plastic	85 °C	-40 C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant
SWITCHCRAFT/CONXALL W7882-10PG-P-300	Receptacle Male Pins	IP66 IP67 IP68	Black					Keyed	Thermoplastic	Gold	300 VAC	Plastic	85 °C	-40 C	Bayonet Lock	Copper Alloy	Panel Mount	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	UV Resistant	Bulkhead - Front Side Nut	10
SWITCHCRAFT/CONXALL W7282-6PG-P-300	Receptacle Male Pins	IP66 IP67 IP68	Black					Keyed	Thermoplastic	Gold	300 VAC	Plastic	85 °C	-40 C	Bayonet Lock	Copper Alloy	Panel Mount	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	UV Resistant	Bulkhead - Front Side Nut	6

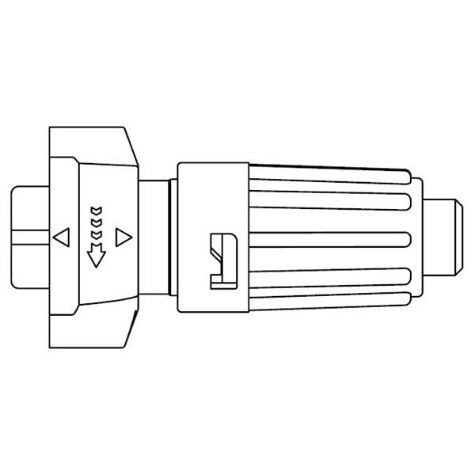

SWITCHCRAFT/CONXALL W6280-2SG-P-528	Plug Female Sockets	IP66 IP67 IP68	Black		0.28 "	0.26 "	6.6 mm	Keyed	Thermoplastic	Gold	300 VAC	Plastic	85 °C	-40 C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant		2	Crimp	7.11 mm
SWITCHCRAFT/CONXALL W7280-8PG-P-300	Receptacle Male Pins	IP66 IP67 IP68	Black					Keyed	Thermoplastic	Gold	300 VAC	Plastic	85 °C	-40 C	Bayonet Lock	Copper Alloy	Panel Mount	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	UV Resistant	Bulkhead - Front Side Nut	8	Crimp
SWITCHCRAFT/CONXALL W6280-5PG-P-3DC	Plug Male Pins	IP66 IP67 IP68	Black					Keyed	Thermoplastic	Gold	300 VAC	Plastic	85 °C	-40 C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant		5	Crimp
SWITCHCRAFT/CONXALL W6380-2PG-P-528	Plug Male Pins	IP66 IP67 IP68	Black		0.28 "	0.26 "	6.6 mm	Keyed	Thermoplastic	Gold	300 VAC	Plastic	85 °C	-40 C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant		2	Crimp	7.11 mm
SWITCHCRAFT/CONXALL W6880-9PG-P-528	Plug Male Pins	IP66 IP67 IP68	Black		0.28 "	0.26 "	6.6 mm	Keyed	Thermoplastic	Gold	300 VAC	Plastic	85 °C	-40 C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant		9	Crimp	7.11 mm
SWITCHCRAFT/CONXALL W6880-9SG-P-522	Plug Female Sockets	IP66 IP67 IP68	Black	6.35 mm	0.25 in	0.22 in	5.59 mm	Keyed	Thermoplastic	Gold	300 VAC	Plastic	85 °C	-40 C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant		9	Crimp
SWITCHCRAFT/CONXALL W7882-9PG-P-3ES	Receptacle Male Pins	IP66 IP67 IP68	Black					Keyed	Thermoplastic	Gold	300 VAC	Plastic	85 °C	-40 C	Bayonet Lock	Copper Alloy	Panel Mount	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	UV Resistant	Bulkhead - Front Side Nut	9
