SSL-LX25783 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED YLW DIFF RECT 2.3MMX7MM T/H

Part	Supplier Device Package [y]	Supplier Device Package [x]	Wavelength - Peak	Viewing Angle	Package / Case	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Millicandela Rating	Color	Lens Transparency	Lens Color	Configuration	Lens Style	Current - Test	Mounting Type	Lens Size [x]	Lens Size [y]
Lumex Opto/Components Inc. SSL-LX25783SYD	7 mm	2.3 mm	585 nm	110 °	Radial	2.1 V	8 mm	160 mcd	Yellow	Diffused	Yellow	Standard	Rectangle with Flat Top	20 mA	Through Hole	7 mm	2.3 mm
Lumex Opto/Components Inc. SSL-LX25783YD	7 mm	2.3 mm	585 nm	110 °	Radial	2.1 V	8 mm	4 mcd	Yellow	Diffused	Yellow	Standard	Rectangle with Flat Top	20 mA	Through Hole	7 mm	2.3 mm

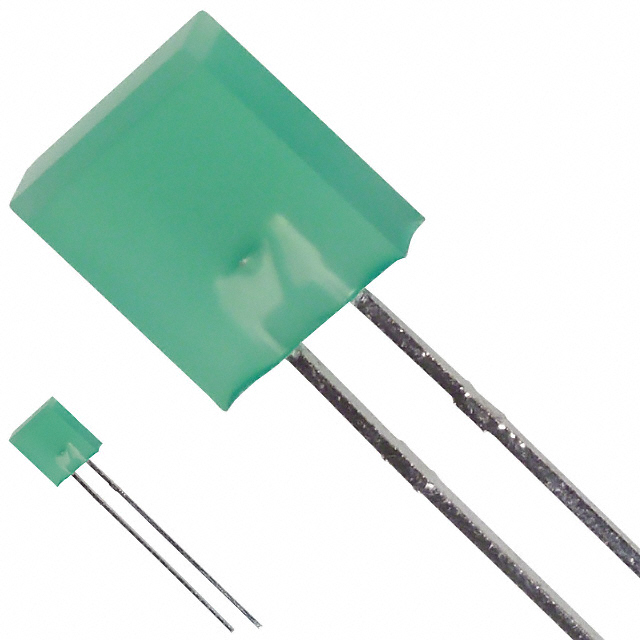

Lumex Opto/Components Inc. SSL-LX25783GD	7 mm	2.3 mm	565 nm	110 °	Radial	2 V	8 mm	9 mcd	Green	Diffused	Green	Standard	Rectangle with Flat Top	20 mA	Through Hole	7 mm	2.3 mm
Lumex Opto/Components Inc. SSL-LX25783SRW-TD	7 mm	2.3 mm	660 nm	80 °	Radial	1.7 V	8 mm	37 mcd	Red	Diffused	White	Standard	Rectangle with Flat Top	20 mA	Through Hole	7 mm	2.3 mm
Lumex Opto/Components Inc. SSL-LX25783AD	7 mm	2.3 mm	605 nm	110 °	Radial	2 V	8 mm	10 mcd	Amber	Diffused	Amber	Standard	Rectangle with Flat Top	20 mA	Through Hole	7 mm	2.3 mm
Lumex Opto/Components Inc. SSL-LX25783AW-TD	7 mm	2.3 mm	605 nm	110 °	Radial	2 V	8 mm	10 mcd	Amber	Diffused	White	Standard	Rectangle with Flat Top	20 mA	Through Hole	7 mm	2.3 mm

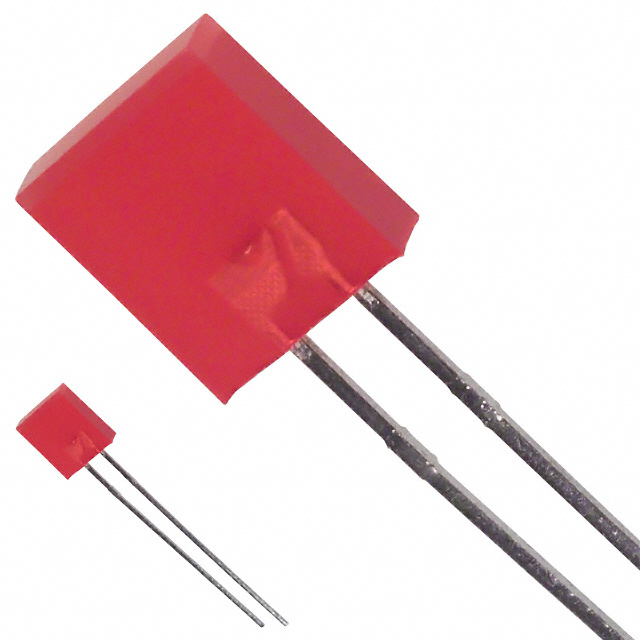

Lumex Opto/Components Inc. SSL-LX25783SRD	7 mm	2.3 mm	660 nm	110 °	Radial	1.8 V	8 mm	50 mcd	Red	Diffused	Red	Standard	Rectangle with Flat Top	20 mA	Through Hole	7 mm	2.3 mm
Lumex Opto/Components Inc. SSL-LX25783ID	7 mm	2.3 mm	635 nm	80 °	Radial	2 V	8 mm	9 mcd	Red	Diffused	Red	Standard	Rectangle with Flat Top	20 mA	Through Hole	7 mm	2.3 mm
