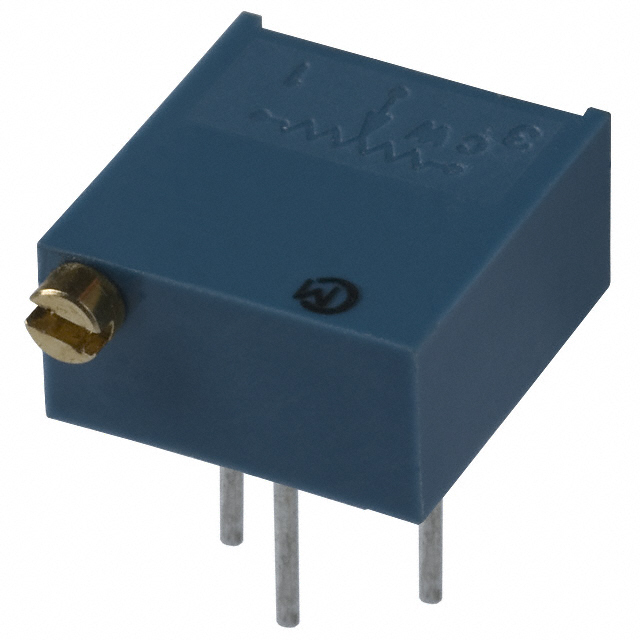

PV36P Series
Manufacturer: Bourns Inc.
Beta
⌘K
TRIMMER 200 OHM 0.5W PC PIN SIDE
| Part | Mounting Type | Resistance | Temperature Coefficient | Number of Turns | Termination Style | Resistive Material | Power (Watts) | Power (Watts) | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | Adjustment Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Through Hole | 200 Ohms | 100 ppm/°C | 25 | PC Pins | Cermet | 0.5 W | 0.5 W | 10 % | 9.6 mm | 5 mm | 0.197 " | 0.378 in | Rectangular - Face | Side Adjustment |
Bourns Inc. | Through Hole | 1 MOhms | 100 ppm/°C | 25 | PC Pins | Cermet | 0.5 W | 0.5 W | 10 % | 9.6 mm | 5 mm | 0.197 " | 0.378 in | Rectangular - Face | Side Adjustment |
Bourns Inc. | Through Hole | 50000 Ohms | 100 ppm/°C | 25 | PC Pins | Cermet | 0.5 W | 0.5 W | 10 % | 9.6 mm | 5 mm | 0.197 " | 0.378 in | Rectangular - Face | Side Adjustment |
Bourns Inc. | Through Hole | 5 kOhms | 100 ppm/°C | 25 | PC Pins | Cermet | 0.5 W | 0.5 W | 10 % | 9.6 mm | 5 mm | 0.197 " | 0.378 in | Rectangular - Face | Side Adjustment |
Bourns Inc. | Through Hole | 1000 Ohms | 100 ppm/°C | 25 | PC Pins | Cermet | 0.5 W | 0.5 W | 10 % | 9.6 mm | 5 mm | 0.197 " | 0.378 in | Rectangular - Face | Side Adjustment |
Bourns Inc. | Through Hole | 250000 Ohms | 100 ppm/°C | 25 | PC Pins | Cermet | 0.5 W | 0.5 W | 10 % | 9.6 mm | 5 mm | 0.197 " | 0.378 in | Rectangular - Face | Side Adjustment |
Bourns Inc. | Through Hole | 2 kOhms | 100 ppm/°C | 25 | PC Pins | Cermet | 0.5 W | 0.5 W | 10 % | 9.6 mm | 5 mm | 0.197 " | 0.378 in | Rectangular - Face | Side Adjustment |
Bourns Inc. | Through Hole | 0.5 kOhms | 100 ppm/°C | 25 | PC Pins | Cermet | 0.5 W | 0.5 W | 10 % | 9.6 mm | 5 mm | 0.197 " | 0.378 in | Rectangular - Face | Side Adjustment |
Bourns Inc. | Through Hole | 25 kOhms | 100 ppm/°C | 25 | PC Pins | Cermet | 0.5 W | 0.5 W | 10 % | 9.6 mm | 5 mm | 0.197 " | 0.378 in | Rectangular - Face | Side Adjustment |
Bourns Inc. | Through Hole | 100 kOhms | 100 ppm/°C | 25 | PC Pins | Cermet | 0.5 W | 0.5 W | 10 % | 9.6 mm | 5 mm | 0.197 " | 0.378 in | Rectangular - Face | Side Adjustment |
