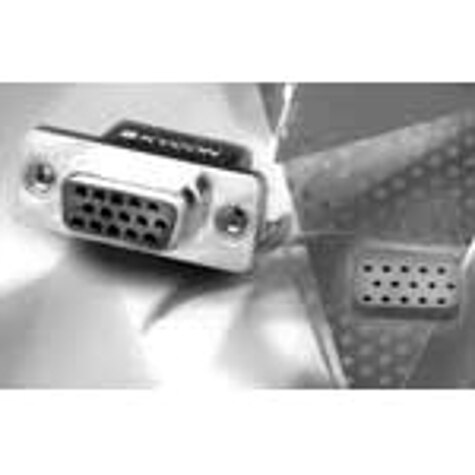

KF66X Series
D-Sub High Density Connectors HD15 FML FE-G/BKT NON THRD INS 30U
Manufacturer: Kycon, Inc.
Catalog
D-Sub High Density Connectors HD15 FML FE-G/BKT NON THRD INS 30U
Beta
⌘K
D-Sub High Density Connectors HD15 FML FE-G/BKT NON THRD INS 30U
D-Sub High Density Connectors HD15 FML FE-G/BKT NON THRD INS 30U
D-Sub High Density Connectors HD15 FML FE-G/BKT NON THRD INS 30U
| Part | Number of Rows [custom] | Shell Material, Finish | Contact Finish Thickness | Material Flammability Rating | Number of Positions | Mounting Type | Flange Feature | Current Rating (Amps) | Contact Type | Shell Size, Connector Layout | Connector Style | Connector Type | Termination | Features | Contact Finish | Backset Spacing | Backset Spacing | Dielectric Material | Voltage Rating | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | 3 | Nickel Plated Steel | Flash | UL94 V-0 | 44 | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | 1.5 A | Signal | 3 | D-Sub High Density | Receptacle Female Sockets | Solder | Board Lock | Gold | 8.89 mm | 0.35 in | ||||||||||||
 Kycon, Inc. | 3 | Nickel Plated Steel | Flash | UL94 V-0 | 15 | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | 1.5 A | Signal | D-Sub High Density | Plug Male Pins | Solder | Board Lock Grounding Indents | Gold | 8.89 mm | 0.35 in | Polybutylene Terephthalate (PBT) Glass Filled | 29 VAC | Brass | Black | -55 C | 75 ░C | (DE E) High Density | 1 | |||||
Kycon, Inc. | 3 | Nickel Plated Steel | UL94 V-0 | 15 | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | 1.5 A | Signal | D-Sub High Density | Receptacle Female Sockets | Solder | Board Lock | Gold | 8.89 mm | 0.35 in | (DE E) High Density | 1 | 30 Áin | 0.76 Ám | ||||||||||
Kycon, Inc. | 3 | Nickel Plated Steel | UL94 V-0 | 26 | Right Angle Through Hole | Housing/Shell | 1.5 A | Signal | D-Sub High Density | Receptacle Female Sockets | Solder | Board Lock | Gold | 8.89 mm | 0.35 in | 2 | 30 Áin | 0.76 Ám | DA A | 4-40 | |||||||||
Kycon, Inc. | 3 | Nickel Plated Steel | Flash | UL94 V-0 | 15 | Right Angle Through Hole | Housing/Shell | 1.5 A | Signal | D-Sub High Density | Receptacle Female Sockets | Solder | Board Lock | Gold | 8.89 mm | 0.35 in | Polybutylene Terephthalate (PBT) Glass Filled | 29 VAC | Phosphor Bronze | Blue | -55 C | 75 ░C | (DE E) High Density | 1 | 4-40 | ||||
Kycon, Inc. | 3 | Nickel Plated Steel | Flash | UL94 V-0 | 44 | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | 1.5 A | Signal | 3 | D-Sub High Density | Plug Male Pins | Solder | Board Lock Grounding Indents | Gold | 8.89 mm | 0.35 in | ||||||||||||
Kycon, Inc. | 3 | Nickel Plated Steel | UL94 V-0 | 15 | Right Angle Through Hole | Housing/Shell | 1.5 A | Signal | D-Sub High Density | Plug Male Pins | Solder | Board Lock Grounding Indents | Gold | 8.89 mm | 0.35 in | (DE E) High Density | 1 | 30 Áin | 0.76 Ám | 4-40 | |||||||||
Kycon, Inc. | 3 | Nickel Plated Steel | Flash | UL94 V-0 | 15 | Right Angle Through Hole | Housing/Shell | 1.5 A | Signal | D-Sub High Density | Receptacle Female Sockets | Solder | Board Lock | Gold | 8.89 mm | 0.35 in | (DE E) High Density | 1 | 4-40 |
