S761K Series

Catalog

DC POWER CONNECTOR, PLUG, 5 A, 2 MM, 12 MM, CABLE MOUNT, SOLDER

Part	Body Material	Housing Material	Contact Material	Includes	Body Color	Contact Material - Plating	Industry Recognized Mating Diameter [diameter]	Insulation Color	Ingress Protection	Termination	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Gender	Connector Type	Voltage - Rated	Mounting Type	Features	Shielding	Current Rating (Amps)	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]

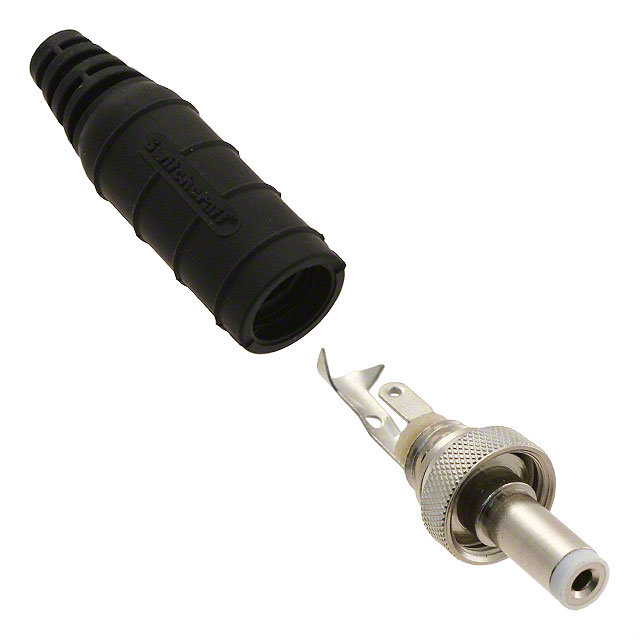

SWITCHCRAFT/CONXALL S761KS12	Copper Alloy	Thermoplastic	Copper Alloy	1 Connector 1 Handle	Black Silver	Tin	2 mm 5.5 mm	White	IP68	Solder Eyelet(s)	0.079 in	2 mm	5.5 mm	0.217 in	Female	Plug	30 V	Free Hanging (In-Line)	Cable Clamp Thread Lock	Unshielded	5 A	2	2

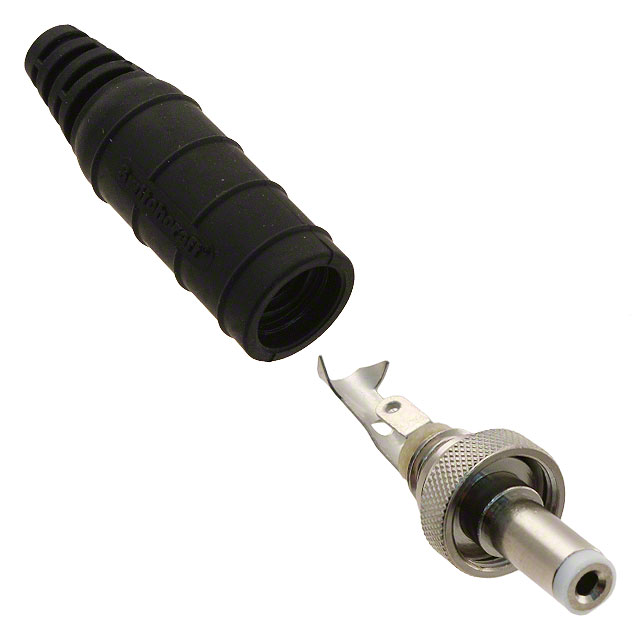

SWITCHCRAFT/CONXALL S761KS15	Copper Alloy	Thermoplastic	Copper Alloy	1 Connector 1 Handle	Black Silver	Tin	2 mm 5.5 mm	White	IP68	Solder Eyelet(s)	0.079 in	2 mm	5.5 mm	0.217 in	Female	Plug	30 V	Free Hanging (In-Line)	Cable Clamp Thread Lock	Unshielded	5 A	2	2
SWITCHCRAFT/CONXALL S761KS17	Copper Alloy	Thermoplastic	Copper Alloy	1 Connector 1 Handle	Black Silver	Tin	2 mm 5.5 mm	White	IP68	Solder Eyelet(s)	0.079 in	2 mm	5.5 mm	0.217 in	Female	Plug	30 V	Free Hanging (In-Line)	Cable Clamp Thread Lock	Unshielded	5 A	2	2
