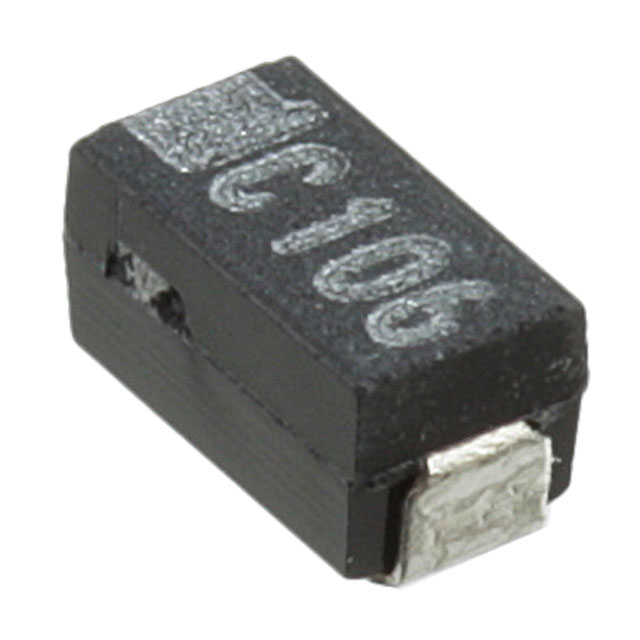

F97 Series
Manufacturer: KYOCERA AVX
Beta
⌘K
TANTALUM CAPACITORS - SOLID SMD 20V 6.8UF 20% 2412 E SR= 1.8 OHM
| Part | Type | Capacitance | Mounting Type | Ratings | Qualification | Features | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Tolerance | ESR (Equivalent Series Resistance) | Voltage - Rated | Grade | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Manufacturer Size Code | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | Molded | 6.8 µF | Surface Mount | AEC-Q200 | AEC-Q200 | Automotive High Reliability | -55 C | 125 °C | 2312 (6032 Metric) | 20 % | 1.8 Ohm | 20 V | Automotive | 3.2 mm | 0.126 in | 0.236 in | 6 mm | |||||||

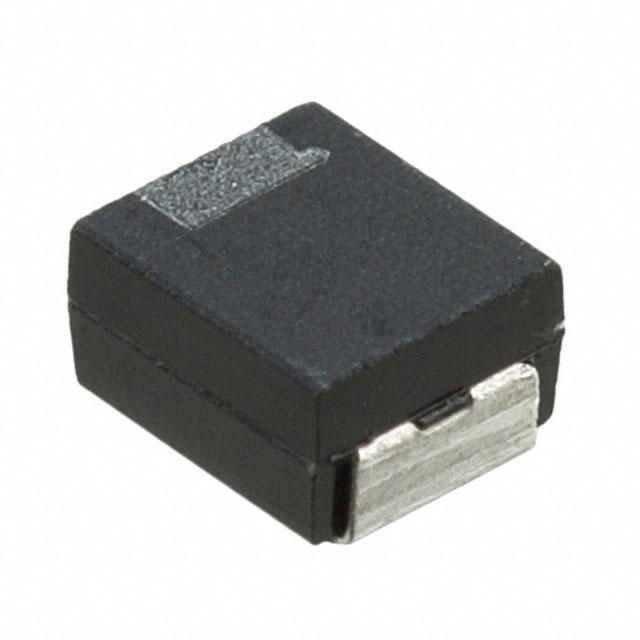

 KYOCERA AVX | Molded | 4.7 µF | Surface Mount | AEC-Q200 | AEC-Q200 | Automotive High Reliability | -55 C | 125 °C | 1411 | 20 % | 2.8 Ohm | 16 V | Automotive | 2.8 mm | 0.11 " | 0.138 in | 3.5 mm | B | 3528 Metric | 2.3 mm | 0.091 in | |||

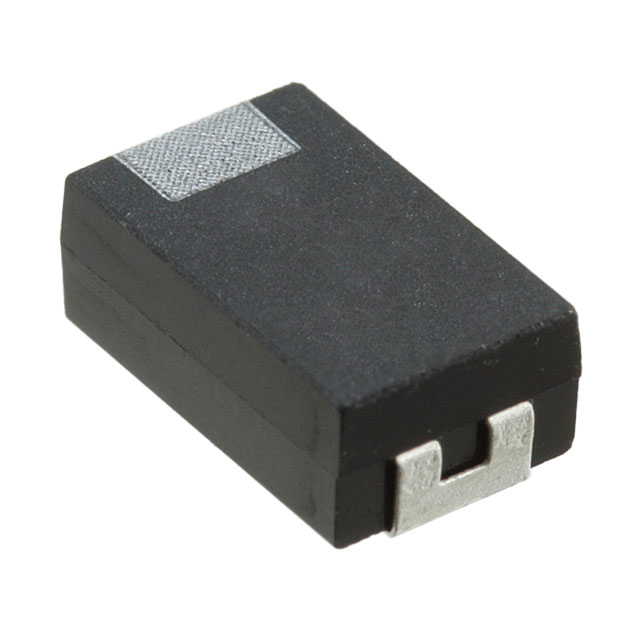

 KYOCERA AVX | Molded | 47 µF | Surface Mount | AEC-Q200 | AEC-Q200 | Automotive High Reliability | -55 C | 125 °C | 2917 (7343 Metric) | 20 % | 700 mOhm | 16 V | Automotive | 4.3 mm | 0.169 " | 0.287 " | 7.3 mm | N | 0.118 " | 3 mm | ||||
 KYOCERA AVX | Molded | 22 µF | Surface Mount | AEC-Q200 | AEC-Q200 | Automotive High Reliability | -55 C | 125 °C | 1411 | 10 % | 1.9 Ohms | 10 V | Automotive | 2.8 mm | 0.11 " | 0.138 in | 3.5 mm | B | 3528 Metric | 2.3 mm | 0.091 in | |||
 KYOCERA AVX | Molded | 100 µF | Surface Mount | AEC-Q200 | AEC-Q200 | Automotive High Reliability | -55 C | 125 °C | 2312 (6032 Metric) | 20 % | 700 mOhm | 10 V | Automotive | 3.2 mm | 0.126 in | 0.236 in | 6 mm | 2.7 mm | 0.106 in | |||||
 KYOCERA AVX | Molded | 1 µF | Surface Mount | AEC-Q200 | AEC-Q200 | Automotive High Reliability | -55 C | 125 °C | 1206 (3216 Metric) | 20 % | 7.5 Ohm | 20 V | Automotive | 1.6 mm | 0.063 " | 0.126 " | 3.2 mm | A | 0.047 " | 1.2 mm | ||||
KYOCERA AVX | Molded | 6.8 µF | Surface Mount | AEC-Q200 | AEC-Q200 | Automotive High Reliability | -55 C | 125 °C | 1411 | 20 % | 2.5 Ohm | 16 V | Automotive | 2.8 mm | 0.11 " | 0.138 in | 3.5 mm | B | 3528 Metric | 2.3 mm | 0.091 in | |||
KYOCERA AVX | Molded | 2.2 µF | Surface Mount | AEC-Q200 | AEC-Q200 | Automotive High Reliability | -55 C | 125 °C | 1206 (3216 Metric) | 10 % | 6.3 Ohm | 20 V | Automotive | 1.6 mm | 0.063 " | 0.126 " | 3.2 mm | A | 0.047 " | 1.2 mm | ||||
KYOCERA AVX | Molded | 6.8 µF | Surface Mount | AEC-Q200 | AEC-Q200 | Automotive High Reliability | -55 C | 125 °C | 1411 | 10 % | 2.5 Ohm | 16 V | Automotive | 2.8 mm | 0.11 " | 0.138 in | 3.5 mm | B | 3528 Metric | 2.3 mm | 0.091 in |
