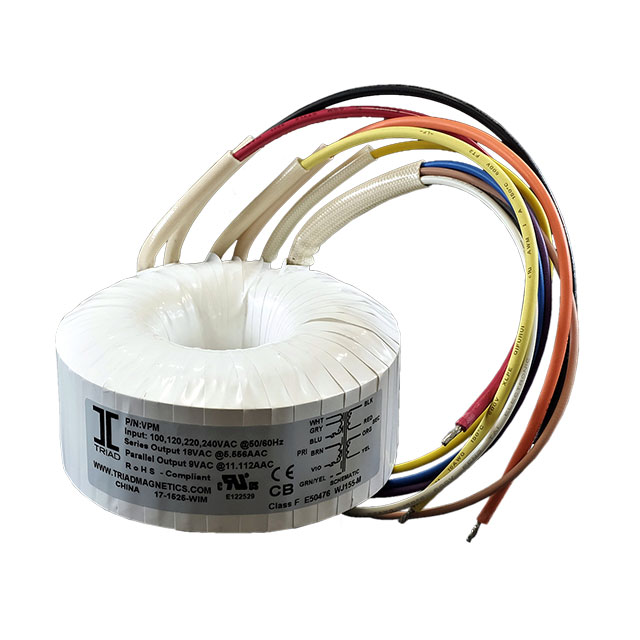

VPM Series

Catalog

POWER TRANSFORMERS MEDICAL GRADE PWR TOROID 240VCTA.2.08A UL/CE TOROIDAL MOUNT

Part	Type	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Height - Seated (Max) [Max]	Weight	Weight	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Mounting Type	Size / Dimension [diameter]	Secondary Winding(s)	Voltage - Isolation	Termination Style	Power - Max [Max]	Primary Winding(s)	Height - Seated (Max) [Max] [z]	Weight [custom]	Weight [custom]	Voltage - Secondary (Full Load)	Current - Output (Max)
Triad Magnetics VPM240-2080	Toroidal	2.08 A	4.16 A	64 mm	11 lbs	5 kg	240 V	120 V	Chassis Mount	147 mm	Dual	4000 VAC	Wire Leads	500 VA	Dual Multiple Taps
Triad Magnetics VPM240-210	Toroidal	210 mA	420 mA		1.6 lbs	725.7 g	240 V	120 V	Chassis Mount	92 mm	Dual	4000 VAC	Wire Leads	50 VA	Dual Multiple Taps	38 mm
Triad Magnetics VPM18-8800	Toroidal								Chassis Mount	113 mm	Dual	4000 VAC	Wire Leads	160 VA	Dual Multiple Taps	52 mm	1.8 kg	4 lbs	9 V 18 V
Triad Magnetics VPM18-13800	Toroidal				5.6 lbs	2.5 kg			Chassis Mount	123 mm	Dual	4000 VAC	Wire Leads	250 VA	Dual Multiple Taps	60 mm			9 V 18 V	13.8 A 27.6 A
