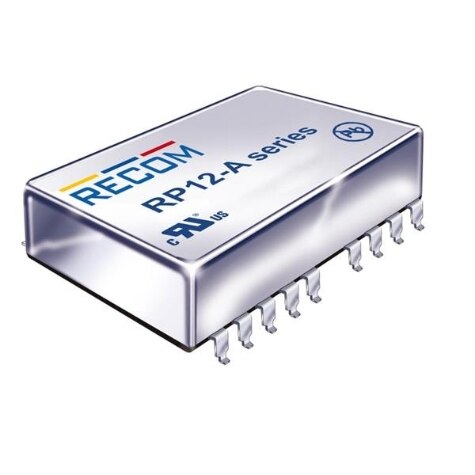

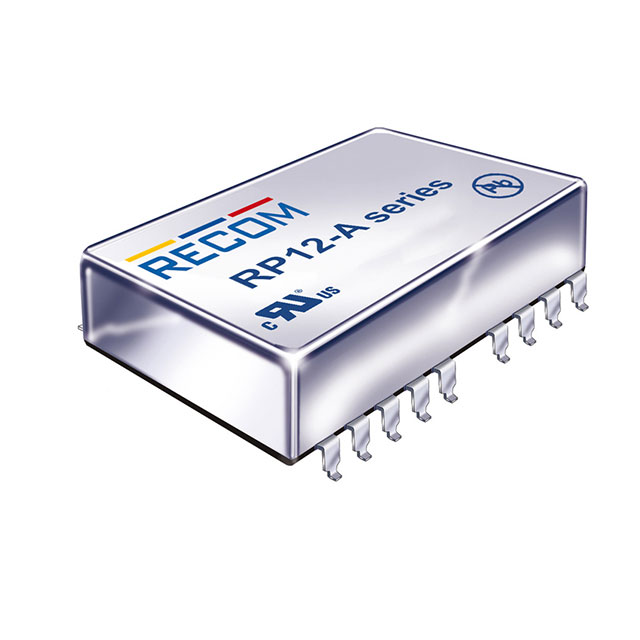

RP12-A Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 12W DC/DC 1.6KV REG 2:1 9-18IN +/-15OUT
| Part | Voltage - Isolation | Current - Output (Max) | Type | Applications | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Mounting Type | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Package / Case | Voltage - Output 2 | Voltage - Output 1 | Features | Control Features | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1.6 kV | 400 mA | Isolated Module | ITE (Commercial) | 87 % | 85 °C | -40 C | 18 V | Through Hole | 2 | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 12 W | 24-DIP Module 9 Leads | -15 V | 15 V | OCP OVP Remote On/Off SCP | Active High Enable | 9 V | |
 Recom Power | 1.6 kV | Isolated Module | ITE (Commercial) | 86 % | 85 °C | -40 C | 18 V | Surface Mount | 1 | 0.8 " | 0.44 in | 32 mm | 11.2 mm | 20.3 mm | 1.26 in | 12 W | 24-SMD Module 18 Leads | 15 V | OCP OVP Remote On/Off SCP | Active High Enable | 9 V | 0.8 A | ||
Recom Power | 1.6 kV | Isolated Module | ITE (Commercial) | 85 % | 85 °C | -40 C | 75 V | Surface Mount | 1 | 0.8 " | 0.44 in | 32 mm | 11.2 mm | 20.3 mm | 1.26 in | 12 W | 24-SMD Module 18 Leads | 3.3 V | OCP OVP Remote On/Off SCP | Active High Enable | 36 V | 3.5 A | ||
 Recom Power | 1.6 kV | Isolated Module | ITE (Commercial) | 87 % | 85 °C | -40 C | 36 V | Through Hole | 1 | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 12 W | 24-DIP Module 9 Leads | 12 V | OCP OVP Remote On/Off SCP | Active High Enable | 18 V | 1 A | ||
 Recom Power | 1.6 kV | Isolated Module | ITE (Commercial) | 86 % | 85 °C | -40 C | 18 V | Surface Mount | 1 | 0.8 " | 0.44 in | 32 mm | 11.2 mm | 20.3 mm | 1.26 in | 12 W | 24-SMD Module 18 Leads | 5 V | OCP OVP Remote On/Off SCP | Active High Enable | 9 V | 2.4 A | ||
Recom Power | 1.6 kV | 1.2 A | Isolated Module | ITE (Commercial) | 85 °C | -40 C | 18 V | Surface Mount | 2 | 0.8 " | 0.44 in | 32 mm | 11.2 mm | 20.3 mm | 1.26 in | 12 W | 24-SMD Module 18 Leads | -5 V | 5 V | OCP OVP Remote On/Off SCP | Active High Enable | 9 V | ||
Recom Power | 1.6 kV | 400 mA | Isolated Module | ITE (Commercial) | 88 % | 85 °C | -40 C | 75 V | Through Hole | 2 | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 12 W | 24-DIP Module 9 Leads | -15 V | 15 V | OCP OVP Remote On/Off SCP | Active High Enable | 36 V | |
Recom Power | 1.6 kV | Isolated Module | ITE (Commercial) | 87 % | 85 °C | -40 C | 75 V | Through Hole | 1 | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 12 W | 24-DIP Module 9 Leads | 12 V | OCP OVP Remote On/Off SCP | Active High Enable | 36 V | 1 A | ||
Recom Power | 1.6 kV | 400 mA | Isolated Module | ITE (Commercial) | 88 % | 85 °C | -40 C | 75 V | Surface Mount | 2 | 0.8 " | 0.44 in | 32 mm | 11.2 mm | 20.3 mm | 1.26 in | 12 W | 24-SMD Module 18 Leads | -15 V | 15 V | OCP OVP Remote On/Off SCP | Active High Enable | 36 V | |
Recom Power | 1.6 kV | Isolated Module | ITE (Commercial) | 87 % | 85 °C | -40 C | 75 V | Surface Mount | 1 | 0.8 " | 0.44 in | 32 mm | 11.2 mm | 20.3 mm | 1.26 in | 12 W | 24-SMD Module 18 Leads | 15 V | OCP OVP Remote On/Off SCP | Active High Enable | 36 V | 0.8 A |
