53D Series

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - AXIAL LEADED 470UF 450V 34.93X104.78 85 C AXI

Part	Applications	Package / Case	Polarization	Voltage - Rated	Lifetime	Size / Dimension Length	Size / Dimension Diameter	Capacitance	Mounting Type	Tolerance (Negative)	Tolerance (Positive)	Operating Temperature (Min)	Operating Temperature (Max)	ESR (Equivalent Series Resistance)	Ripple Current
Vishay Dale 53D471F450MD6	General Purpose	Axial Can	Polar	450 V	1000 Hrs	4.141 in	1.375 in	470 µF	Through Hole	10 %	50 %	-40 °C	85 °C
Vishay Dale 53D393G025MT6	General Purpose	Axial Can	Polar	25 VAC	1000 Hrs	3.642 in	1.374 in	39000 µF	Through Hole	10 %	75 %	-40 °C	85 °C
Vishay Dale 53D102G050GE6E3	General Purpose	Axial Can	Polar	50 V	1000 Hrs	1.142 in	0.76 in	1000 µF	Through Hole	10 %	75 %	-40 °C	85 °C	231 mOhm	1.093 A 950 mA
Vishay Dale 53D112G035GE6E3	General Purpose	Axial Can	Polar	35 V	1000 Hrs	1.142 in	0.76 in	1100 µF	Through Hole	10 %	75 %	-40 °C	85 °C	219 mOhm	1.127 A 980 mA
Vishay Dale 53D272F100JT7	General Purpose	Axial Can	Polar	100 VAC/DC	1000 Hrs	3.642 in	1.012 in	2700 µF	Through Hole	10 %	50 %	-40 °C	85 °C
Vishay Dale 53D622G025HL6	General Purpose	Axial Can	Polar	25 VAC	1000 Hrs	2.142 in	0.886 in	6.2 mF	Through Hole	10 %	75 %	-40 °C	85 °C	51 mOhm	2.87 A 3.301 A
Vishay Dale 53D472G063JP6	General Purpose	Axial Can	Polar	63 V	1000 Hrs	2.642 in	1.012 in	4700 µF	Through Hole	10 %	75 %	-40 °C	85 °C
Vishay Dale 53D153F035JT6	General Purpose	Axial Can	Polar	35 V	1000 Hrs	3.642 in	1.012 in	15000 µF	Through Hole	10 %	50 %	-40 °C	85 °C
Vishay Dale 53D471F100GJ7	General Purpose	Axial Can	Polar	100 VAC/DC	1000 Hrs	1.642 in	0.76 in	470 µF	Through Hole	10 %	50 %	-40 °C	85 °C

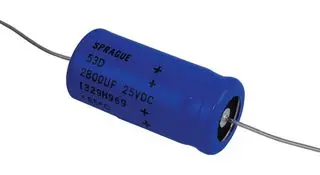

Vishay Dale 53D282G025GJ6	General Purpose	Axial Can	Polar	25 VAC	1000 Hrs	1.642 in	0.76 in	2800 µF	Through Hole	10 %	75 %	-40 °C	85 °C	103 mOhm	1.65 A 1.898 A
