G8N Series

Catalog

RELAY AUTOMOTIVE SPDT 30A 12V

Part	Operate Time	Must Operate Voltage	Coil Resistance	Coil Current	Termination Style	Mounting Type	Must Release Voltage	Coil Power	Contact Form	Contact Material	Coil Type	Release Time	Contact Rating (Current)	Coil Voltage	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]

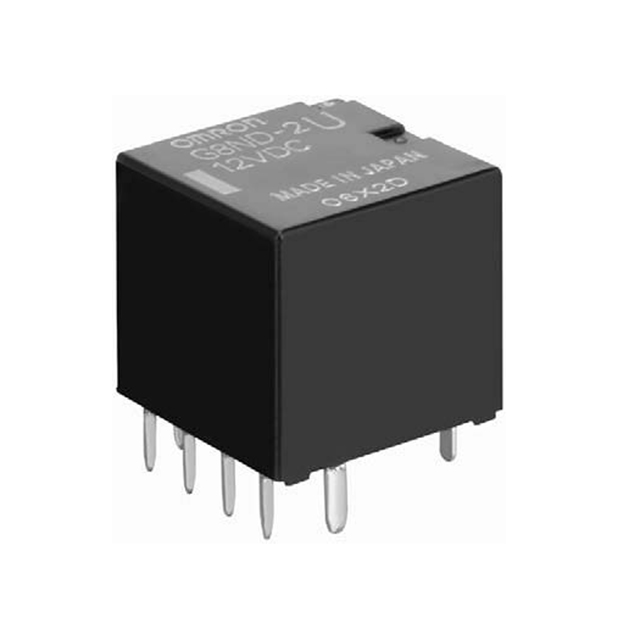

Omron Electronics Inc-EMC Div G8ND-2 DC12 SK	10 ms	7.2 VDC	225 Ohms	53.3 mA	PC Pin	Through Hole	1 VDC	640 mW	SPDT (1 Form C) x 2	Silver Tin Oxide (AgSnO)	Non Latching	10 ms	30 A	12 VDC	16 VDC	85 °C	-40 °C
Omron Electronics Inc-EMC Div G8NB-1 DC12	10 ms	7.2 VDC	225 Ohms	53.3 mA	PC Pin	Through Hole	1 VDC	640 mW	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)	Non Latching	10 ms	30 A	12 VDC	16 VDC
Omron Electronics Inc-EMC Div G8ND-2-DC12	10 ms	7.2 VDC	225 Ohms	53.3 mA	PC Pin	Through Hole	1 VDC	640 mW	SPDT (1 Form C) x 2	Silver Tin Oxide (AgSnO)	Non Latching	10 ms	30 A	12 VDC	16 VDC	85 °C	-40 °C

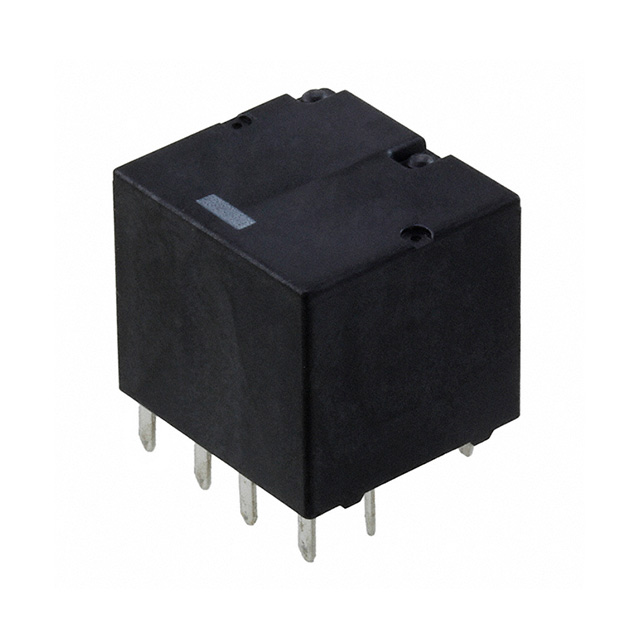

Omron Electronics Inc-EMC Div G8NW-2H DC12	10 ms	6.5 VDC	180 Ohms	66.7 mA	PC Pin	Through Hole	1 VDC	800 mW	SPDT (1 Form C) x 2	Silver Tin Oxide (AgSnO)	Non Latching	10 ms	30 A	12 VDC	16 VDC	105 ░C	-40 °C

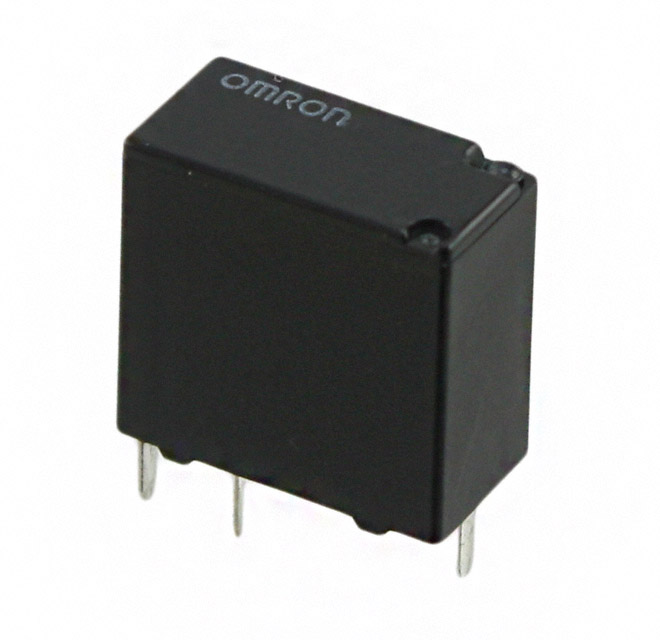

Omron Electronics Inc-EMC Div G8N-1L-AS DC12	10 ms	7.2 VDC	225 Ohms	53.3 mA	PC Pin	Through Hole	1 VDC	640 mW	SPDT (1 Form C)	Silver Tin (AgSn)	Non Latching	10 ms	30 A	12 VDC	16 VDC	105 ░C	-40 °C
