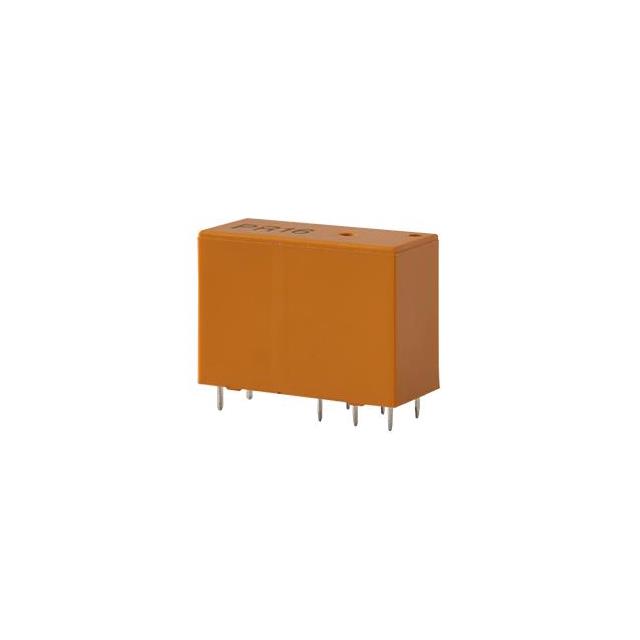

PR16-24V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
RELAY GEN PURPOSE DPST 5A 24V
| Part | Coil Voltage | Must Release Voltage | Contact Rating (Current) | Release Time | Coil Current | Coil Type | Switching Voltage [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Form | Mounting Type | Load - Max Switching | Termination Style | Relay Type | Must Operate Voltage | Coil Resistance | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 24 VDC | 2.4 VDC | 5 A | 8 ms | 22.5 mA | Non Latching | 30 VDC 250 VAC | -30 ░C | 70 °C | Silver Alloy | DPST-NO (2 Form A) | Through Hole | 150 W 1250 VA | PC Pin | General Purpose | 18 VDC | 1.067 kOhms | 15 ms |
Same Sky (Formerly CUI Devices) | 24 VDC | 2.4 VDC | 5 A | 8 ms | 22.5 mA | Non Latching | 30 VDC 250 VAC | -30 ░C | 70 °C | Silver Alloy | DPST-NO (2 Form A) | Through Hole | 150 W 1250 VA | PC Pin | General Purpose | 18 VDC | 15 ms | |
 Same Sky (Formerly CUI Devices) | 24 VDC | 2.4 VDC | 5 A | 8 ms | 22.5 mA | Non Latching | 30 VDC 250 VAC | -30 ░C | 70 °C | Silver Alloy | DPDT (2 Form C) | Through Hole | 150 W 1250 VA | PC Pin | General Purpose | 18 VDC | 1.067 kOhms | 15 ms |
Same Sky (Formerly CUI Devices) | 24 VDC | 2.4 VDC | 5 A | 8 ms | 22.5 mA | Non Latching | 30 VDC 250 VAC | -30 ░C | 70 °C | Silver Alloy | DPDT (2 Form C) | Through Hole | 150 W 1250 VA | PC Pin | General Purpose | 18 VDC | 15 ms |
