951226 Series

Catalog

3M PIN STRIP HEADER, 951 SERIES,

Part	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Length - Post [custom]	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Mounting Type	Termination	Insulation Material	Number of Rows [custom]	Contact Shape	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Finish - Mating	Insulation Color	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Finish - Post	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Features
3M Electronic Specialty 951226-7622-AR	All	Flash	0.11 in	2.79 mm	4 mm	0.157 in	Right Angle Through Hole	Solder	Thermoplastic	2	Square	Push-Pull	Male Pin	-55 C	125 °C	26	0.079 "	2 mm	0.173 in	4.4 mm	Copper Alloy	Gold	Black	UL94 V-0	2 mm	0.079 in	Header	Tin	Unshrouded	39.4 çin	1 çm
3M Electronic Specialty 951226-8622-AR	All	Flash	0.11 in	2.79 mm	1.52 mm	0.06 in	Through Hole	Solder	Thermoplastic	2	Square	Push-Pull	Male Pin	-55 C	125 °C	26	0.079 "	2 mm	0.173 in	4.4 mm	Brass Copper Alloy	Gold	Black	UL94 V-0	2 mm	0.079 in	Header	Tin	Unshrouded	39.4 çin	1 çm	2 A	0.343 in	8.7 mm	0.059 in	1.5 mm

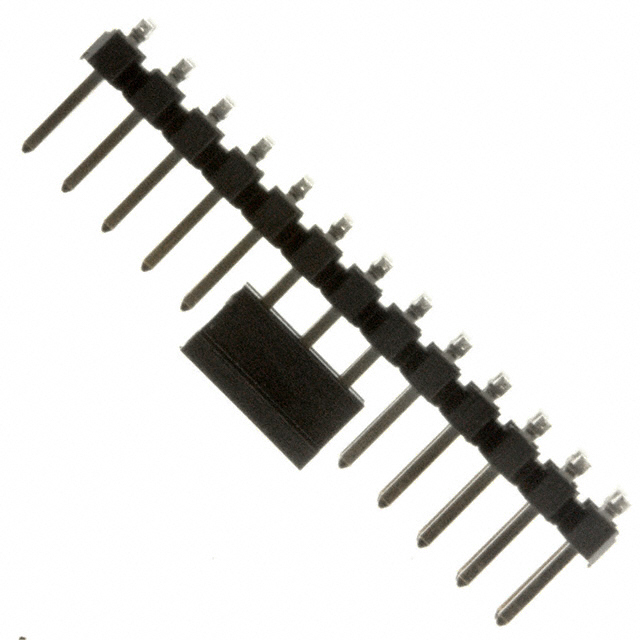

3M Electronic Specialty 951226-2520-AR-PR	All	Flash			1.52 mm	0.06 in	Surface Mount	Solder	Thermoplastic	2	Square	Push-Pull	Male Pin	-25 °C	105 ░C	26	0.079 "	2 mm	0.157 in	4 mm	Copper Alloy	Gold	Black	UL94 V-0	2 mm	0.079 in	Header	Tin	Unshrouded	39.4 çin	1 çm						Pick and Place
