INND-TS40 Series
Manufacturer: Inolux Corporation
Beta
⌘K

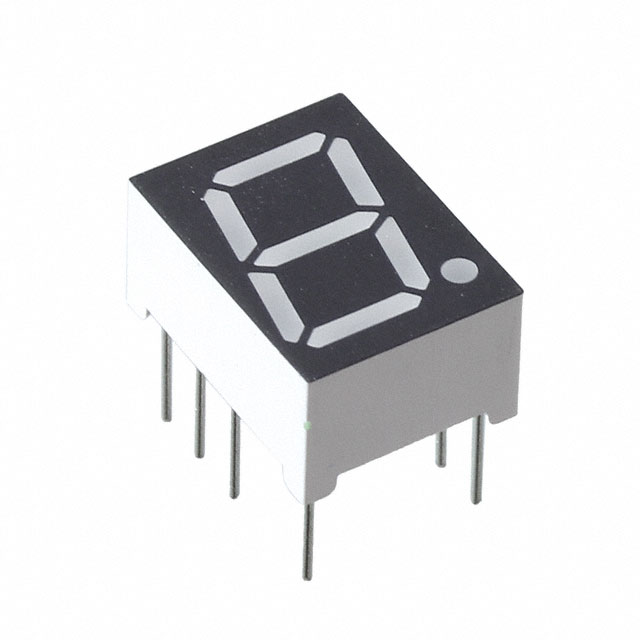

DISPLAY 7SEG 0.4" SGL GRN 10DIP
| Part | Number of Characters | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Voltage - Forward (Vf) (Typ) | Power Dissipation (Max) [Max] | Common Pin | Current - Test | Millicandela Rating | Display Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Wavelength - Peak | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Inolux Corporation | 1 | 10-DIP (0.300" 7.62mm) | 10.16 mm | 0.4 in | 3.2 V | 114 mW | Common Anode | 20 mA | 150 mcd | 7-Segment | 12.9 mm | 6.36 mm | 0.508 " | 0.379 " | 9.63 mm | 6.35 mm | 525 nm | Green |
Inolux Corporation | 1 | 10-DIP (0.300" 7.62mm) | 10.16 mm | 0.4 in | 2 V | 70 mW | Common Anode | 20 mA | 20 mcd | 7-Segment | 12.9 mm | 6.36 mm | 0.508 " | 0.379 " | 9.63 mm | 6.35 mm | 660 nm | Red |
Inolux Corporation | 1 | 10-DIP (0.300" 7.62mm) | 10.16 mm | 0.4 in | 2 V | 70 mW | Common Anode | 20 mA | 20 mcd | 7-Segment | 12.9 mm | 6.36 mm | 0.508 " | 0.379 " | 9.63 mm | 6.35 mm | 660 nm | Red |
Inolux Corporation | 1 | 10-DIP (0.300" 7.62mm) | 10.16 mm | 0.4 in | 2 V | 70 mW | Common Anode | 20 mA | 40 mcd | 7-Segment | 12.9 mm | 6.36 mm | 0.508 " | 0.379 " | 9.63 mm | 6.35 mm | 592 nm | Yellow |
Inolux Corporation | 1 | 10-DIP (0.300" 7.62mm) | 10.16 mm | 0.4 in | 3.2 V | 114 mW | Common Cathode | 20 mA | 55 mcd | 7-Segment | 12.9 mm | 6.36 mm | 0.508 " | 0.379 " | 9.63 mm | 6.35 mm | White |
