FS25R12 Series

Manufacturer: INFINEON

Catalog

IGBT MOD 1200V 40A 145W

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	Mounting Type	Current - Collector (Ic) (Max) [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max) [Max]	Configuration	Input	IGBT Type	Vce(on) (Max) @ Vge, Ic [Max]

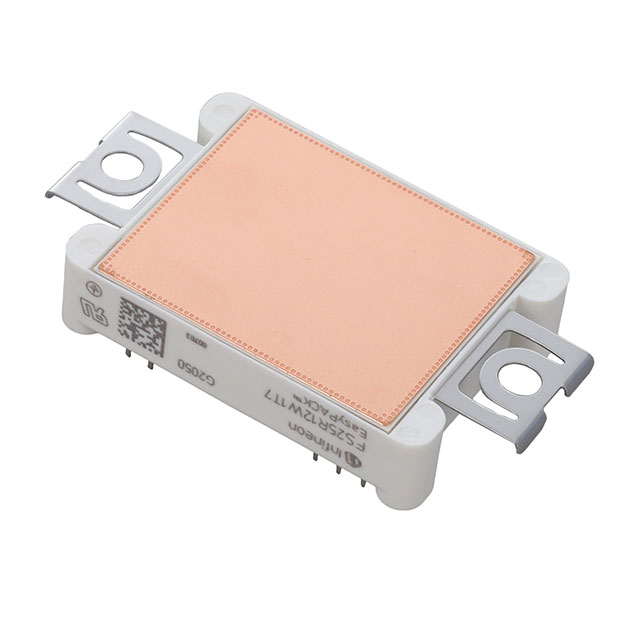

INFINEON FS25R12KE3GBOSA1	Module	125 °C	-40 C	145 W	2.15 V	Chassis Mount	40 A	Module	1200 V	1.8 nF	5 mA	Full Bridge	Standard

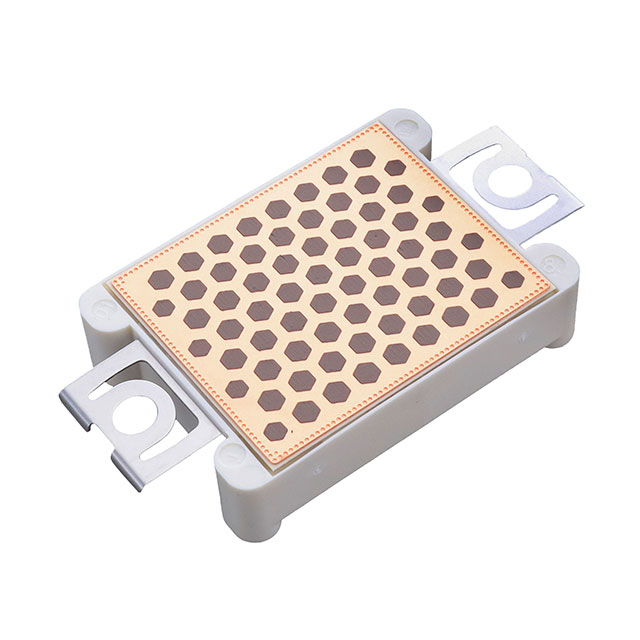

INFINEON FS25R12W1T7PB11BPSA1	Module	175 °C	-40 °C	20 mW		Chassis Mount	25 A	Module	1200 V	4.77 nF	5.6 µA	Three Phase Inverter	Standard	Trench Field Stop
INFINEON FS25R12W1T7B11BOMA1	AG-EASY1B	175 °C	-40 °C	20 mW	1.6 V	Chassis Mount	25 A	Module	1200 V	4.77 nF	5.6 µA	Three Phase Inverter	Standard	Trench Field Stop
INFINEON FS25R12W1T7BOMA1	AG-EASY1B	175 °C	-40 °C			Chassis Mount	25 A	Module	1200 V	4.77 nF	5.6 µA	Three Phase Inverter	Standard	Trench Field Stop
INFINEON FS25R12KT3BOSA1	Module	125 °C	-40 C	145 W	2.15 V	Chassis Mount	40 A	Module	1200 V	1.8 nF	5 mA	Full Bridge	Standard	Trench Field Stop
INFINEON FS25R12W1T4B11BOMA1	Module	150 °C	-40 C	205 W		Chassis Mount	45 A	Module	1200 V	1.45 nF	1 mA	Three Phase Inverter	Standard	Trench Field Stop	2.25 V
